Intel Core i7 1185G7 Processor Soft Router With 6 LAN 4 USB3.1

Intel Core i7 1185G7 Processor Soft Router With 6 LAN 4 USB3.1

Brand Name:	Helor PC
Model Number:	X56
MOQ:	1 Piece
Price:	338.28usd
Delivery Time:	15 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Ce, Rohs, Sgs

Processor System:

Intel Core I7 1185G7

Memory:

Dual Channel DDR4 3200MT/s, Up To 64GB.

Network:

Network 6* Intel I225 NIC

Storage:

1*SATA 3.0, 1*M.2 2280

OS Support:

Win10, Linux

Video:

Intel Iris Xe Graphics, HD-MI

Front Interfaces:

1*power Button, 4*USB3.1 Ports, 1*RS232 COM, 1*HD-MI Port

Rear Interfaces:

1*DC-12V, 6 LAN

Function:

PXE Boot, Wake On LAN, Watchdog

Cooling Method:

Full Aluminum Alloy Ice Spike

Material:

Aluminum Alloy

Super I/O:

ITE, Supports 1*COM, Built In COM2 Pin Header.

Temperature Monitoring:

Supports CPU/Motherboard/HDD Temperature Monitoring

Hardware Monitoring:

Supports 4 In, 4 Out GPIO

Packaging Details:

Color Box

Supply Ability:

50000 pieces/month

Product Description

Intel Core i7 1185G7 Processor Soft Router With 6 LAN 4 USB3.1

Firewall Mini PC Product Introduction

This device is a high performance Router PC. It is equipped with 6*Intel i225 network controllers as core network configuration, supporting Wake on LAN and diskless boot. It enables multi WAN access, internal and external network isolation, and link aggregation, making it ideal for deploying soft routers, gateways and network security equipment. It supports dual channel DDR4 3200MT/s memory, expandable up to 64GB to effortlessly run various applications. For storage, it supports both SATA 3.0 hard drives and high speed M.2 2280 SSDs to meet diverse storage requirements. Built in hardware watchdog and temperature monitoring for CPU, motherboard and hard drive allow automatic system reset in case of anomalies.

Firewall Mini PC Product Specifications

Processor System	Intel Core i7 1185G7
Memory	Dual channel DDR4 3200MT/s, up to 64GB.
Power Consumption	15W
Power Function	Supports Power On After Power Loss
Power Input	12V
Operating Temperature	-20°C ~ 60°C
Storage Temperature	-40°C ~ 80°C
Storage Humidity	0% ~ 90% relative humidity, non condensing
Installation method	Supports desktop and wall mounted
Dimensions	15512652mm

Firewall Mini PC CPU Performance

Powered by Intel Core i7 1185G7 processor for smooth operation. With 4 cores and 8 threads, it handles multi tasking and lightweight productivity workloads efficiently. It reaches a maximum turbo frequency of 4.80 GHz to deliver strong burst performance. Equipped with 12 MB Intel Smart Cache, it reduces data access latency and greatly improves efficiency for office work and light content creation.

Firewall Mini PC Cooling Solution

Full aluminum passive cooling design effectively prevents dust accumulation inside the unit and eliminates noise generated by cooling fans.

Firewall Mini PC Application Scenarios

This network router is widely deployed for enterprise & corporate networks, rental apartments, hotels, security surveillance, small data centers and server rooms.

Intel Core i7 1185G7 Processor Soft Router With 6 LAN 4 USB3.1

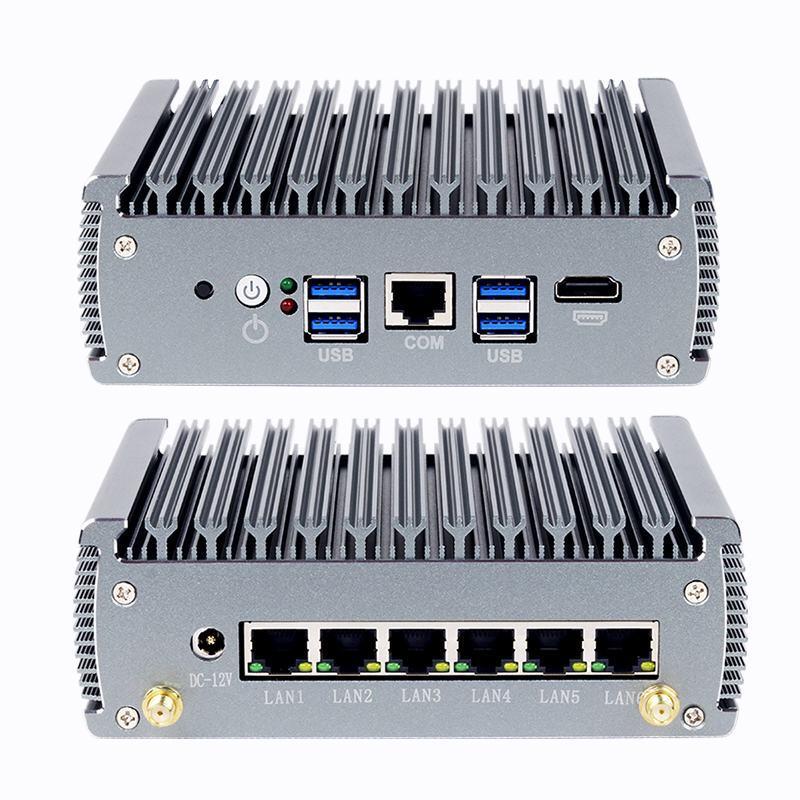

Firewall Mini PC Interface Description

This computer router features well partitioned interfaces. The front panel includes 1*power button, 4*USB3.1 ports, 1*RS232 COM port and 1*HD-MI video output port. The rear panel is equipped with 1*DC-12V power input and 6*Gigabit LAN ports. The native 6*LAN router design balances network forwarding, industrial peripheral connection and display debugging.
