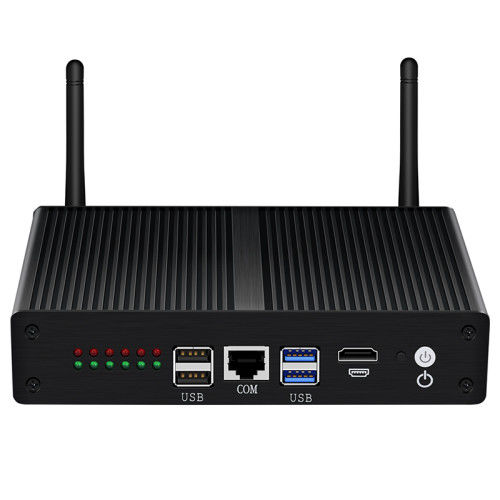

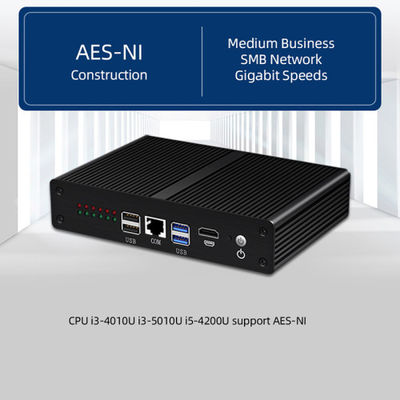

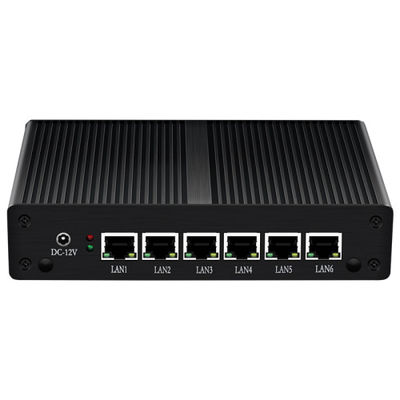

Intel Core I3 / I5 Fanless Desktop Software Router 6 RJ45 LAN DDR3 8GB RAM

Name: Intel Core I3 / I5 Fanless Desktop Software Router 6 RJ45 LAN DDR3 8GB RAM
Brand: Shenzhen Helor Cloud Computer Co., Ltd.
SKU: X34 6LAN
Price: 120.00 USD
Availability: InStock

Brand Name:	Helor PC
Model Number:	X34 6LAN
MOQ:	1 Pieces
Price:	$90.00 ~ $150.00 / Piece/Pieces
Delivery Time:	15 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen GuangDong China

Certification:

Ce, Rohs, Sgs

CPU:

Intel Celeron 2955U, Intel Core I3-4010U/ I5-4200U/ I3-5010U

GPU:

Intel HD Graphics: 2955U; Intel HD Graphics 4400: I3-4010U/i5-4200U; Intel HD Graphics 5500: I3-5010U

Memory:

DDR3L 1066/1333/1600MHz, 1.35V

Hard Disk:

SSD:1*Full Height MSATA Socket, HDD:1*SATA2.5"HDD

LAN:

6*RJ45 LAN(10/100/1000/ Intel 211AT Gigabits Ethernet)

Extension:

1* Full Height Mini PCIe

HDMI:

Maximum Resolution 3200×2000 @60Hz

Operating System:

Windows 7/Windows 8/Windows 10, Linux, PFSense, Etc

I/O Port:

2*USB3.0, 2*USB2.0, 1*HDMI, 6*RJ45 LAN, 1*RS232 COM, 1*DC 12V, 1*Power Button, 1*HD

Power:

Power Type:DC-IN5.5*2.5, Power Input Vol:12V, Power Input Ampere:5A

Dimensions:

122mm*175mm*38mm; About 0.8KG

Operating Temperature:

-20-65℃

Storage Temperature:

15℃-35℃

Relative Humidity:

5%~95% (non-condensing)

Material:

Aluminum Alloy

Color:

Black

Packaging Details:

Carton Box

Supply Ability:

1500 Pieces

Highlight:

Desktop Software Router

I5 Software Router

Intel Core Fanless Router

Product Description

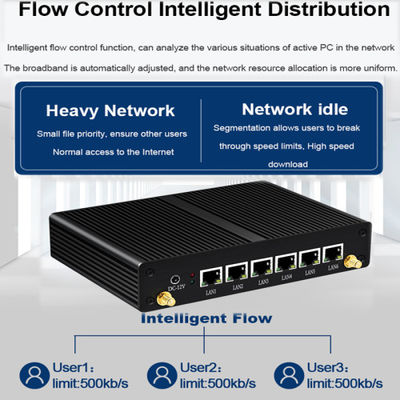

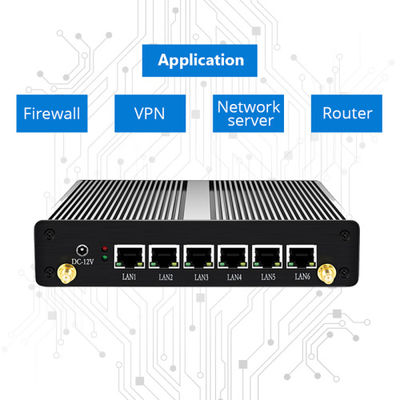

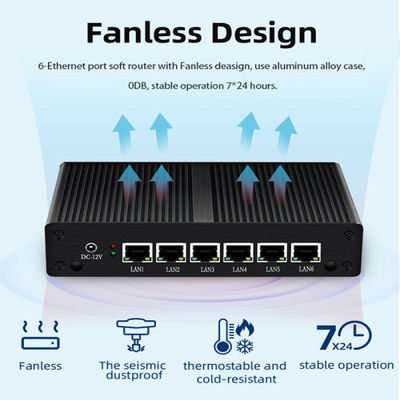

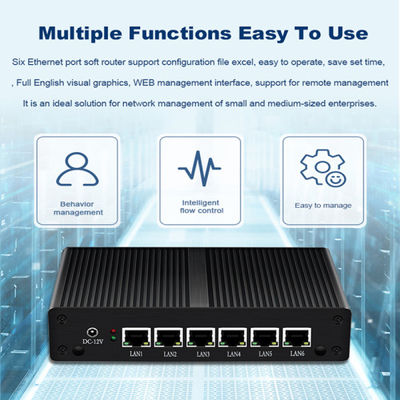

This 6 LAN Firewall Router with fanless cooling system, noiseless, stable heat dissipation, with more stable running. This Mini Computer enboard 2955U I3 I5 I7 4th 5th Gen processor, low consumption, save power. As a 6 LAN Mini PC, support VPN, broardband overlay, behavior management, intelligent flow control, one-line multi-dial. On the other hand, this Mini Desktop support windows 10, windows 8, windows 7, Linux, Centos, etc, suitable for computer room, internet cafes, network server, hotel, enterprise, etc.

Product Details
CPU (Support customization)	Intel Celeron 2955U: 2M Cache, 1.40 GHz, 2 Core 2 Threads, TDP: 15W Core i3-4010U: 3M Cache, 1.70 GHz, 2 Core 4 Threads, TDP: 15W Core i5-4200U: 3M Cache, up to 2.60 GHz, 2 Core 4 Threads, TDP: 15W Core i3-5010U: 3M Cache, 2.10 GHz, 2 Core 4 Threads, TDP: 15W
GPU	Intel Celeron 2955U: Intel HD Graphics (Haswell GT1) Core i3-4010U/ i5-4200U: Intel HD Graphics 4400 Core i3-5010U: Intel HD Graphics 5500
Memory	1*DDR3L 1066/ 1333/ 1600MHz, 1.35V
Hard Disk	1Full Height mSATA socket SSD; 1SATA2.5" HDD
LAN	6*RJ45 LAN(10/100/1000/ intel 211AT Gigabits Ethernet)
Extension	1* Full Height Mini PCIe
HDMI	Maximum resolution 3200×2000 @60Hz
Operating System	Windows 7, Windows 8, Windows 10, Linux, PFSense, etc
I/O Port	2USB3.0, 2USB2.0, 1HDMI, 6RJ45 LAN, 1RS232 COM, 1DC 12V, 1Power button, 1HD
Power	Power Type:DC-IN5.5*2.5, Power Input Vol:12V, Power Input Ampere:5A
Dimensions	122mm175mm38mm, about 0.8kg
Working Environment	Operating Temperature: -20-65℃, Storage Temperature: 15℃-35℃, Relative Humidity: 5%~95% (non-condensing)
Material	Aluminum Alloy
Color	Black
