Intel Celeron G6900 Processor Industrial Mini PC With 6 COM 2 LAN

Name: Intel Celeron G6900 Processor Industrial Mini PC With 6 COM 2 LAN
Brand: Shenzhen Helor Cloud Computer Co., Ltd.
SKU: X116
Price: 318.44 USD
Availability: InStock

Brand Name:	Helor PC
Model Number:	X116
MOQ:	1 Piece
Price:	318.44usd
Delivery Time:	15 work days
Payment Terms:	T/T,D/A,D/P,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Ce, Rohs, Sgs

Processor System:

Intel Celeron G6900

Memory:

2*SO-DIMM Memory Slots, Support Dual-channel 3200MHz DDR4 Memory, Maximum Support Up To 64GB.

Network:

2*Realtek 8111H Gigabit Ethernet

Storage:

2*SATA 3.0 Interfaces; 1*M.2 KEYM 2280/2242 PCIe 3.0*4 Slot, Supports NVMe And SATA SSDs (auto-detection)

Audio:

Onboard ALC897 6-channel High-definition Audio Controller, Supports MIC/Line-out/amplifier (supports 2Ω 5W)

Fan Headers:

1*4-pin CPU Fan Header, 1*4-pin System Fan Header

GPIO:

Supports 4-channel Input/output GPIO

TPM:

Supports External TPM 2.0 Via 2*6 Pin Header, Supports Onboard TPM 2.0

BIOS:

64Mb Flash ROM

Power Type:

Supports 12~19V DC Power Input

Operating Temperature:

-10°C To +60°C

Storage Temperature:

-20°C To +70°C

Storage Humidity:

5%-95% Relative Humidity, Non-condensing

Dimensions:

≈242mm*244mm*95mm

Packaging Details:

Color Box

Supply Ability:

50000 pieces/month

Product Description

Intel Celeron G6900 Processor Industrial Mini PC With 6 COM 2 LAN

Product Introduction Of Industrial Mini computer

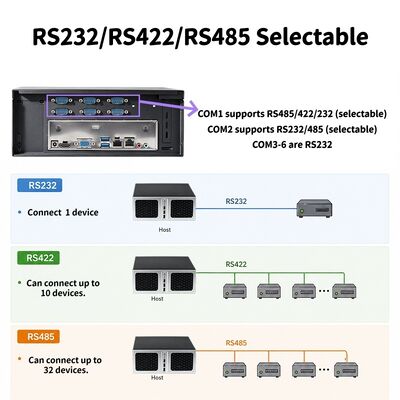

This industrial‑grade mini‑PC features robust hardware configuration and powerful expandability, perfectly suited for diverse scenarios such as industrial automation, security monitoring, multimedia scheduling and daily‑office tasks. It is equipped with dual Realtek‑8111H Gigabit Ethernet ports for high‑speed and steady data transmission. Network isolation and link aggregation are available to meet industrial‑networking requirements. 6*COM ports are built‑in for connection with PLCs, sensors and instruments. 2*SO‑DIMM slots support dual‑channel DDR4‑3200 memory with a maximum capacity up to 64GB, enabling smooth multitask‑running.

Product Specifications Of Industrial Mini computer

Processor System	Intel Celeron G6900
Memory	2*SO-DIMM memory slots, support dual-channel 3200MHz DDR4 memory, maximum support up to 64GB.
Network	2*Realtek 8111H Gigabit Ethernet
Storage	2SATA 3.0 interfaces 1M.2 KEYM 2280/2242 PCIe 3.0*4 slot, supports NVMe and SATA SSDs (auto-detection)
Front Interfaces	2USB 2.0, 1Type-C
Rear Interfaces	6COM, 1DC 12-19V, 1HD-MI, 1VGA, 2USB 3.0, 2LAN ports, 1Mic jack, 1Headphone jack
Expansion Slots	1Mini-PCIe slot, supports WiFi/4G 1PCIe 4.0*4 Slot
Power Input	DC 12V-19V
OS Support	Win10/11, Linux
Watchdog	Supports hardware reset function (256 levels, 0~255 seconds)

CPU Performance Of Industrial Mini computer

This Intel processor features a pure performance-core configuration, with a 2-core, 2-thread architecture, a base frequency of up to 3.40GHz, and 4MB of Intel Smart Cache, ensuring fast and stable program computing response.

Intel Celeron G6900 Processor Industrial Mini PC With 6 COM 2 LAN 0

Application Scenarios Of Industrial Mini computer

This PC portable covers all industries and is widely used in industrial automation, factory assembly lines, banking and financial systems, access control gates, rail smart transportation, commercial displays, and other fields.

Intel Celeron G6900 Processor Industrial Mini PC With 6 COM 2 LAN 1

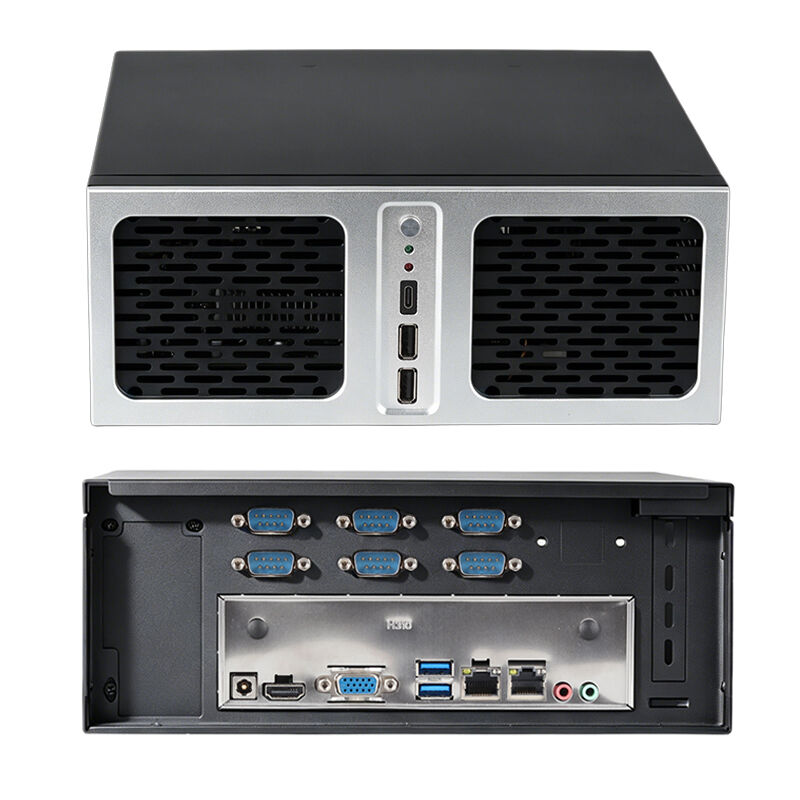

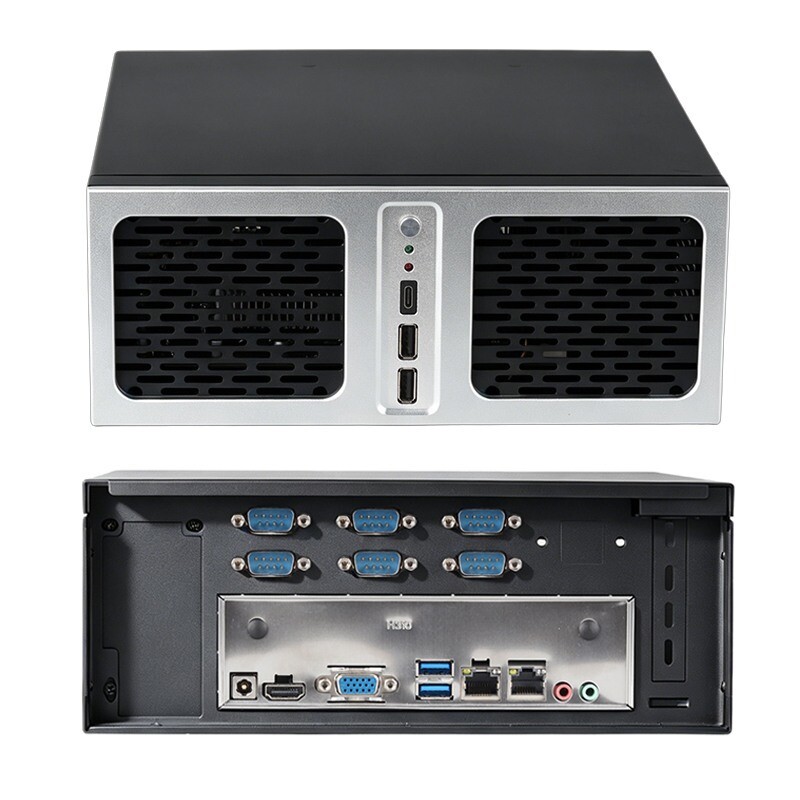

Interface Description Of Industrial Mini computer

This industrial mini PC has complete and well-arranged interfaces. Front interfaces: 2*USB 2.0, 1*Type-C;
Rear interfaces: 6* COM, 1 *DC 12-19V, 1*HD-MI, 1*VGA, 2*USB 3.0, 2*LAN ports, 1*Mic jack, 1*Headphone jack.

Expandable Functions Of Industrial Mini computer

This industrial computer features an expansion slot with 1*Mini-PCIe slot, which supports WiFi and 4G module expansion to meet wireless networking and mobile communication needs. It also includes 1*PCIe 4.0*4 slot, supporting high-speed expansion cards such as discrete graphics cards, high-speed network cards, and storage controllers, significantly enhancing performance scalability.

Customization Of Industrial Mini computer

We provide one-stop OEM/OBM/ODM services for industrial mini PCs. Our customization covers appearance, firmware, hardware circuitry, power supply, etc., all can be tailored to meet your project needs.
