Industrial PC
Created with Pixso. Intel Celeron J1900 Fanless Industrial PC With Dual COM GPIO And DDR3L 8G

Intel Celeron J1900 Fanless Industrial PC With Dual COM GPIO And DDR3L 8G

Brand Name: Helor PC
Model Number: X39 J1900
MOQ: 1 Piece
Price: Negotiable
Delivery Time: 15 work days
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
Ce, Rohs, Sgs
CPU:
Intel Celeron J1900 4 Cores 4 Threads Processor
Memory:
1*DDR3L SO-DIMM, Max Up To 8GB
Storage:
1*MSATA SSD, 1*2.5 Inch SATA HDD/SSD
Ethernet:
2*GbE RJ45 Intel I211/i210 LAN
Packaging Details:
Carton Box
Supply Ability:
500 Pieces
Highlight:

J1900 Industrial PC

,

Fanless Industrial PC

Product Description

Intel Celeron Processor J1900 Fanless Industrial PC With Dual COM GPIO And DDR3L 8G

J1900 Industrial PC Description:

Powered by an Intel Celeron J1900 processor with 4 cores and 4 threads, up to 2.42 GHz, 2 MB of L2 cache, and a total power consumption of only 10 W. This mini PC is compact and powerful.

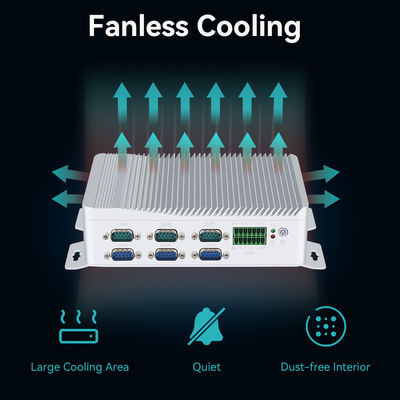

It has an all-aluminum fins fanless cooling design. Due to the large cooling area, it completely eliminates fan noise and provides a quiet working environment. In addition, with no fan, there is no dust inside the machine, greatly extending the life of the hardware and improving the overall stability of the device.
It also provides the platform with 7*24 hour 24/7 operation capability, ensuring a stable operating environment at all times. You can set it up with boot-up and WOL settings to provide convenience and flexibility for your business or personal needs.

Whether it's an industrial application or a home office solution, this mini PC is ideal for those who demand the highest levels of performance and reliability.

J1900 Industrial PC Details:

Celeron J1900 Industrial PC Details

CPU

Intel Celeron J1900 4 Cores 4 Threads Processor, Burst Frequency 2.42 GHz, 2 MB L2 Cache, 10W TDP

CPU

Intel® HD Graphics for Intel Atom® Processor Z3700 Series

Memory

1*DDR3L SO-DIMM, Max up to 8GB

Storage (Hard Disk)

1*MSATA SSD, 1*2.5 inch SATA HDD/SSD

Ethernet

2*GbE RJ45 Intel i211/i210 LAN

Video Support

1*HDMI,1*VGA

I/O Interface

2*USB3.0, 4*USB2.0, 6*DB9 COM(COM1/2 support RS485/RS422), 1*HDMI, 1*VGA, 10*GPIO(Custom In/Outputs), 1*Power Button: 12V Power in, 1*Audio, 1*Mic, 2*Antenna port for WIFI/3G/4G

Expansion

1*Mini-PCIE (support WIFI/Bluetooth);

1*Mini-PCIE (with SIM slot, support 3G/4G module, WIFI/Bluetooth)

OS

Windows 7/8/10, Linux, WES7/10, etc.

Other

Supports Watchdog, Auto Power on, PXE boot

Cooling System

Fanless Cooling

Power

1*DC 12V 3A

Material

Aluminium Alloy

Suitable Temperature

Operating Temperature: -20℃ to +60℃; Storage Temperature: -30℃ to +70℃; Storage Humidity: 10% - 90%@30℃ (Non-condesing)

Dimension

180*120*54mm

Weight

About 1.0kg

Installation

Supports Desktop/ Wall-mounting



J1900 Industrial PC Processor:

Powered by an Intel Celeron J1900 processor with 4 cores and 4 threads, up to 2.42 GHz, 2 MB of L2 cache, and a total power consumption of only 10 W. This mini PC is compact and powerful.

Intel Celeron J1900 Fanless Industrial PC With Dual COM GPIO And DDR3L 8G 0



J1900 Industrial PC RAM And Storage:

This industrial fanless PC powered by 1*DDR3L SO-DIMM, Max up to 8GB and 1*MSATA SSD, 1*2.5 inch SATA HDD / SSD, which significantly improves computer responsiveness, instant program initiation and seamless file upload / download.

Intel Celeron J1900 Fanless Industrial PC With Dual COM GPIO And DDR3L 8G 1

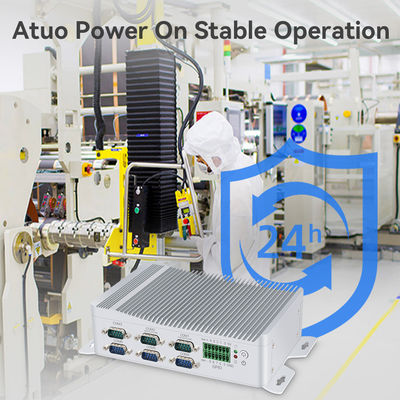

J1900 Industrial PC Stable Operation:

Enclosed construction ensures robust machine operation against diverse dusty industrial surroundings with broad temperature range (-20℃ to +60℃) and exceptional levels of corrosion and moisture resistance.

Intel Celeron J1900 Fanless Industrial PC With Dual COM GPIO And DDR3L 8G 2

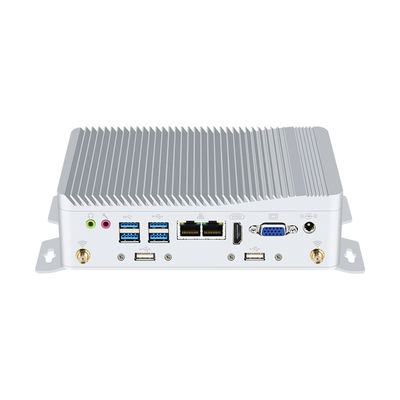

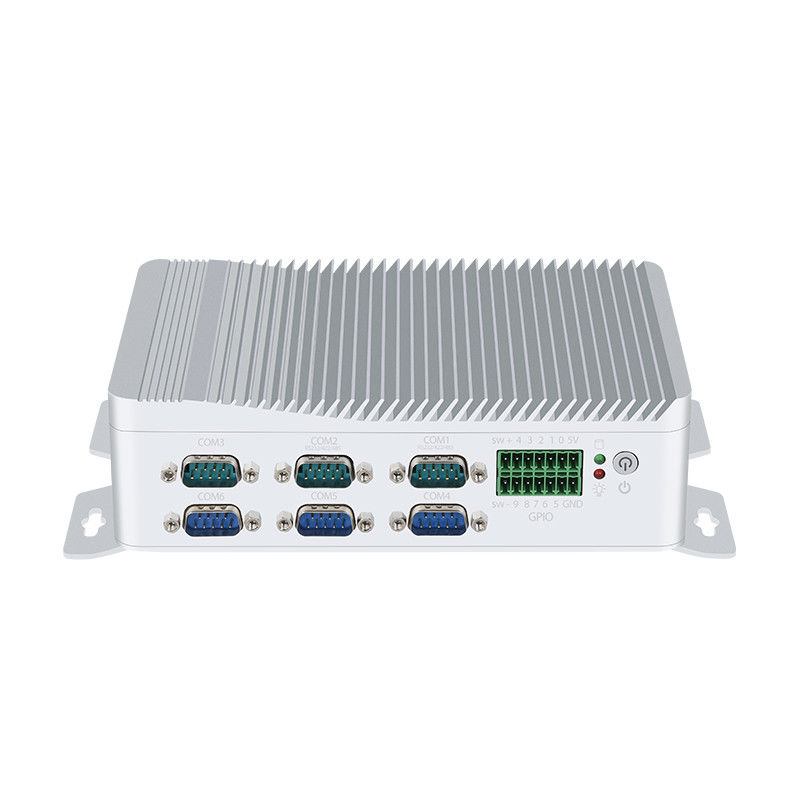

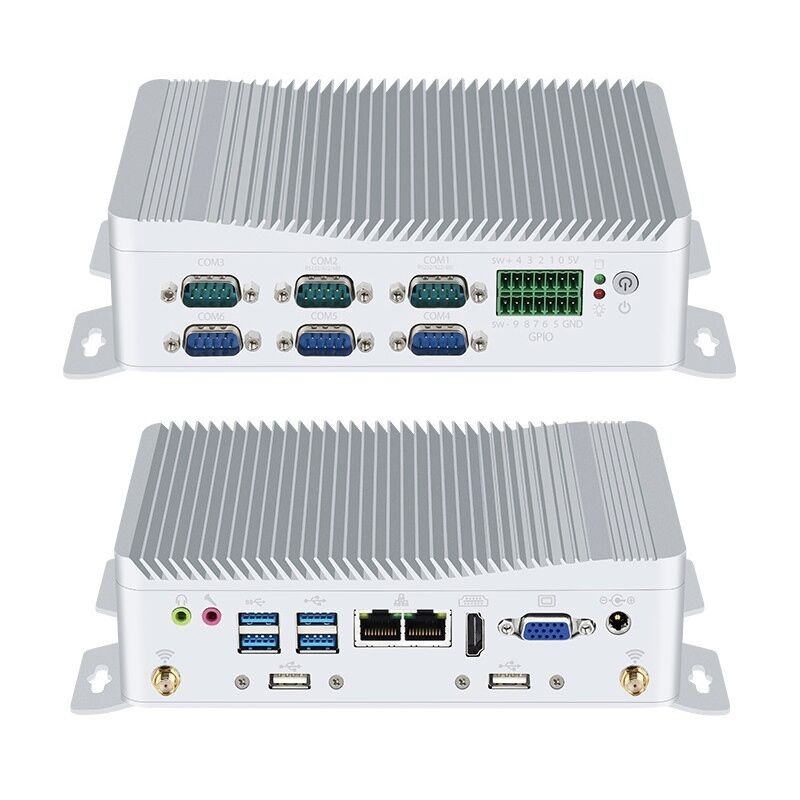

J1900 Industrial PC Interface View:

Intel Celeron J1900 Fanless Industrial PC With Dual COM GPIO And DDR3L 8G 3



With Gigabit Ethernet port * 2, COM port * 6, GPIO * 1, USB3.0 * 4, USB2.0 * 2, VGA * 1, HDMI * 1, can be flexibly expanded to control more external devices.

Intel Celeron J1900 Fanless Industrial PC With Dual COM GPIO And DDR3L 8G 4
