Intel Core U5 135U Processor Fanless Industrial Mini PC With 2 LAN Ports 2 RS232 COM Ports 8 USB 2 HD-MI and 1 DP Interfaces

Intel Core U5 135U Processor Fanless Industrial Mini PC With 2 LAN Ports 2 RS232 COM Ports 8 USB 2 HD-MI and 1 DP Interfaces

Brand Name:	Helor PC
Model Number:	X58
MOQ:	1 Piece
Price:	407.31usd
Delivery Time:	15 work days
Payment Terms:	T/T,D/A,D/P,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Ce, Rohs, Sgs

Processor System:

Core U5 135U

Installation Method:

Supports Desktop And Wall-mounted Installation

Dimensions:

193.9mm*127mm*57.2 Mm

Storage Temperature:

-30°C To +70°C

Operating Temperature:

-20°C To +60°C

Storage Humidity:

10% ~ 90% @30℃, Non-condensing

Packaging Details:

Color Box

Supply Ability:

50000 pieces/month

Product Description

Intel Core U5 135U Processor Fanless Industrial Mini PC With

2 LAN Ports 2 RS232 COM Ports 8 USB 2 HD-MI and 1 DP Interfaces

Product Introduction of Mini Industrial PC

This industrial mini PC powered by Intel Core 135U processor delivers balanced and comprehensive hardware configurations, catering to diverse scenarios including

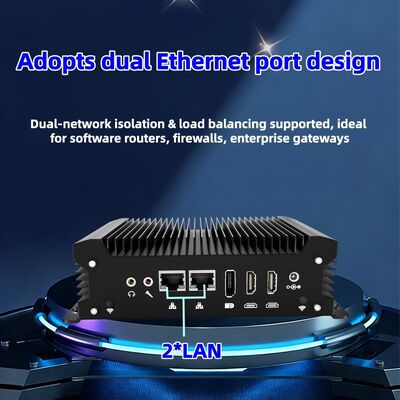

industrial production, corporate office work, multimedia monitoring and outdoor networking. It is equipped with dual Realtek 8111H Gigabit RJ45 Ethernet ports to

deliver outstanding high-speed wired transmission, meeting networking demands such as daily corporate data exchange, server room routing, small local area network

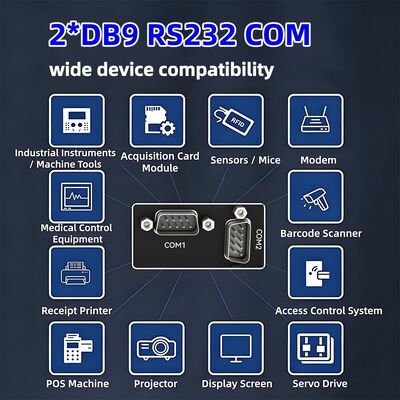

setup and security surveillance data backhaul. Built-in 2*RS232 industrial serial ports enable seamless connection with PLCs, sensors and other industrial peripherals.

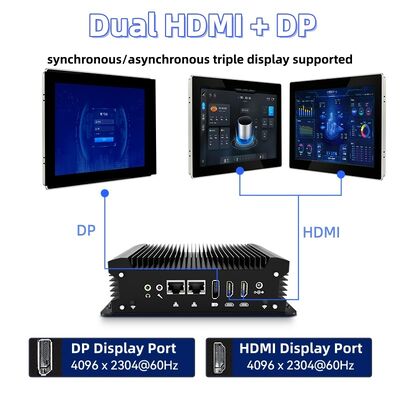

For video output, it features 2*HD-MI ports and 1*DP port supporting multi-screen split display, perfectly suited for industrial visualization, multi-station office work and

multi-view monitoring dispatch.

Product Specifications of Mini Industrial PC

Processor System	Core U5 135U
Memory	1*DDR5 SOIMM, up to 64GB
Network	2*GbE RJ45 Realtek 8111H
Storage	1M.2 2280 (NVMe protocol only), 12.5-inch HDD/SSD
Front Interfaces	1Power Button, 4USB3.0, 4USB2.0, 2COM (RS232)
Rear Interfaces	2WiFi Antenna Ports, 1Audio Jack, 1Microphone Jack, 2LAN, 1DP, 2HD-MI, 1*DC Power Jack
Expansion Slots	1M.2 2232 WiF, 1M.2 3042 slot for 3G/4G module, with on-board SIM card slot
Power Input	12V-19V
OS Support	Win10, Win11, Linux

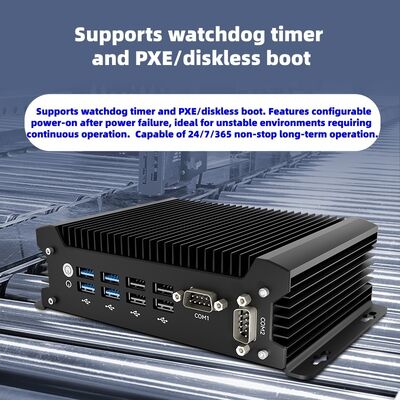

Functions	Supports Watchdog and Diskless Boot

Environmental Adaptability of Mini Industrial PC

This fanless industrial mini PC boasts outstanding environmental adaptability. Engineered for harsh industrial conditions, it features dustproof, moisture-proof, shock

-resistant and wide temperature tolerance properties for long-term stable and reliable operation.

Intel Core U5 135U Processor Fanless Industrial Mini PC With 2 LAN Ports 2 RS232 COM Ports 8 USB 2 HD-MI and 1 DP Interfaces 0

Application Scenarios of Mini Industrial PC

This RS232-equipped mini PC boasts extensive cross-industry compatibility. It can be widely deployed in smart device terminals, digital signage, vending machines,

industrial sites, entertainment venues, commercial institutions, financial facilities, surveillance systems, medical equipment and more vertical sectors.

Intel Core U5 135U Processor Fanless Industrial Mini PC With 2 LAN Ports 2 RS232 COM Ports 8 USB 2 HD-MI and 1 DP Interfaces 1

Interface Description of Mini Industrial PC

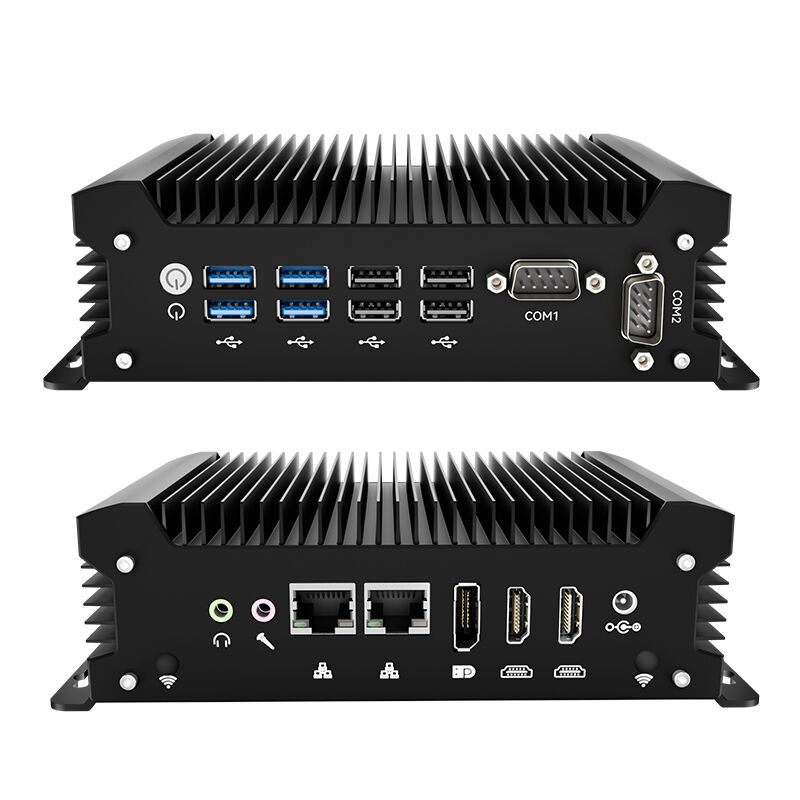

This industrial mini PC comes with full-range abundant interfaces on front and rear panels: Front Panel: 1*Power Button, 4*USB3.0, 4*USB2.0, 2*COM (RS232);

Rear Panel: 2*WiFi Antenna Ports, 1*Audio Jack, 1*Microphone Jack, 2*LAN, 1*DP, 2*HD-MI, 1*DC Power Jack. It fulfills all-in-one demands for industrial control, office

monitoring, multi-screen operation and peripheral expansion.

Intel Core U5 135U Processor Fanless Industrial Mini PC With 2 LAN Ports 2 RS232 COM Ports 8 USB 2 HD-MI and 1 DP Interfaces 2

Expandable Functions of Mini Industrial PC

This industrial mini PC adopts dual expansion slot design, supporting 1*M.2 2232 WiFi module and 1*M.2 3042 3G/4G module for flexible wireless connectivity options.

On-board SIM card slot: The 3G/4G module slot integrates a built-in SIM slot, plug-and-play without extra adapters, ideal for mobile network deployment.

Applicable scenarios: Industrial control, security monitoring, edge computing and other equipment requiring dual backup of WiFi and cellular networks.
