Industrial Mini Pc Intel Core I5 1235U Processor Two 2.5GbE RJ45 Intel I225V LAN 2DB9 COM 1EXT IO FANLESS I5 Computer

Name: Industrial Mini Pc Intel Core I5 1235U Processor Two 2.5GbE RJ45 Intel I225V LAN 2DB9 COM 1EXT IO FANLESS I5 Computer
Brand: Shenzhen Helor Cloud Computer Co., Ltd.
SKU: X64G
Price: 462.24 USD
Availability: InStock

Brand Name:	Helor PC
Model Number:	X64G
MOQ:	1 Piece
Price:	462.24usd
Delivery Time:	15 work days
Payment Terms:	T/T,D/A,D/P,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Ce, Rohs, Sgs

Processor System:

Core I5-1235U

Network:

2*2.5GbE RJ45 With Intel I225V (Expandable To 4 Ethernet Ports)

Power Input:

9V-36V

Storage Temperature:

-30°C To +70°C

Operating Temperature:

-20°C To +60°C

Storage Humidity:

10% ~ 90%, Non-condensing

Packaging Details:

Color Box

Supply Ability:

50000 pieces/month

Product Description

Industrial Mini Pc Intel Core I5 1235U Processor Two 2.5GbE

RJ45 Intel I225V LAN 2DB9 COM 1EXT IO FANLESS I5 Computer

Product Introduction of Industrial PC with Intel Core i5-1235U Processor

This unit is equipped with Intel Core i5-1235U processor adopting a hybrid architecture of 10 cores and 12 threads, consisting of 2 Performance Cores and 8

Efficient Cores to balance powerful performance and energy efficiency. It delivers a maximum turbo power of 55W and minimum sustained power of 12W, striking

a perfect balance between burst computing performance and long-term low-power standby operation. The Performance Cores reach an ultra-high max turbo

frequency of 4.4 GHz for instant peak computing power. Built-in 12 MB Intel Smart Cache boosts throughput efficiency for multi-task processing. With a base low

power consumption of 15W and dynamic wide power adjustment, it is perfectly compatible with compact industrial control devices. Desktop mounting is supported.

Product Specifications of Industrial PC with Intel Core i5-1235U Processor

Processor System	Core i5-1235U
Memory	1*DDR5, up to 32GB
Storage	1M.2 2242/2260/2280 SATA, 12.5-inch HDD/SSD, 1*M.2 2280 NVME
Front Interfaces	1HD-MI, 4USB2.0, 2LAN, 2COM, 1EXT IO: Integrated with 4-channel 3-wire COM ports, 10-channel GPIO and 1 remote switch, 1ATX/AT dual-mode boot toggle switch, 2USB 3.0 ports, 14-pin aviation power socket, 1power button, 1audio jack
Rear Interfaces	5*Wi-Fi antenna ports for Wi-Fi/Bluetooth/3G/4G/5G modules
OS Support	Win10, WES10, Linux
Operating Temperature	-20℃ ~ +60℃
Installation Methods	Supports desktop

Product Details of Industrial PC with Intel Core i5-1235U Processor

This industrial PC runs stably and smoothly with Intel Core i5-1235U processor. It features 1*high-speed DDR5 memory slot supporting up to 32GB capacity, delivering

higher bandwidth and smoother multi-task operation. Comes with 2*Intel I225V 2.5G industrial network adapters, expandable to 4 Ethernet ports for stable large-data

transmission. Triple storage bays: 1*M.2 2242/2260/2280 SATA slot + 1*2.5-inch HDD/SSD bay + 1*M.2 2280 NVME slot for flexible capacity expansion. The expansion

slot supports M.2 3042/3052 3G/4G/5G modules with an onboard SIM card slot, plus M.2 2230 slot for Wi-Fi & Bluetooth modules. Compatible with Win10, WES10

and Linux operating systems. It seamlessly works with industrial software including soft routing, PLC control, virtualization and edge data collection, and can connect to

existing production line equipment without extra modification. Hardware watchdog and diskless boot functions enable unattended automatic operation and maintenance.

9-36V wide industrial voltage input protects against voltage fluctuations. Wide operating temperature range of -20°C to 60°C, suitable for high and low temperature &

humid industrial environments.

Industrial Mini Pc Intel Core I5 1235U Processor Two 2.5GbE RJ45 Intel I225V LAN 2DB9 COM 1EXT IO FANLESS I5 Computer 0

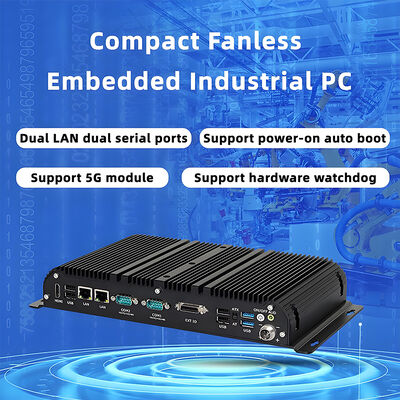

Performance Overview of Industrial PC with Intel Core i5-1235U Processor

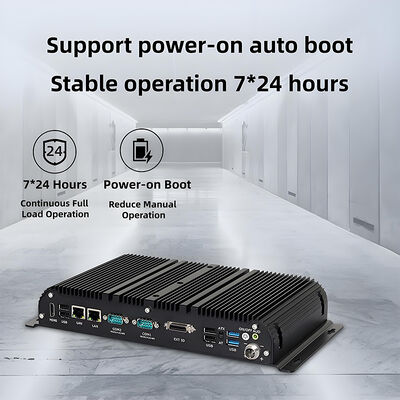

Designed for industrial scenarios, this mini industrial control computer features dustproof, anti-corrosion, anti-vibration, anti-shock and anti-interference capabilities,

enabling normal operation under various temperature and humidity conditions. It supports power-on auto boot, energy-saving long-hour continuous operation, and

stable performance under unstable environments, meeting the operating demands of various commercial and industrial automation equipment. The whole machine

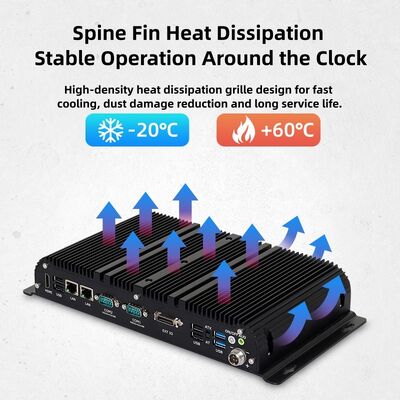

adopts high-density grille heat dissipation technology to accelerate heat dissipation, reduce hardware damage caused by dust and extend the long-term service life

of the equipment.

Industrial Mini Pc Intel Core I5 1235U Processor Two 2.5GbE RJ45 Intel I225V LAN 2DB9 COM 1EXT IO FANLESS I5 Computer 1

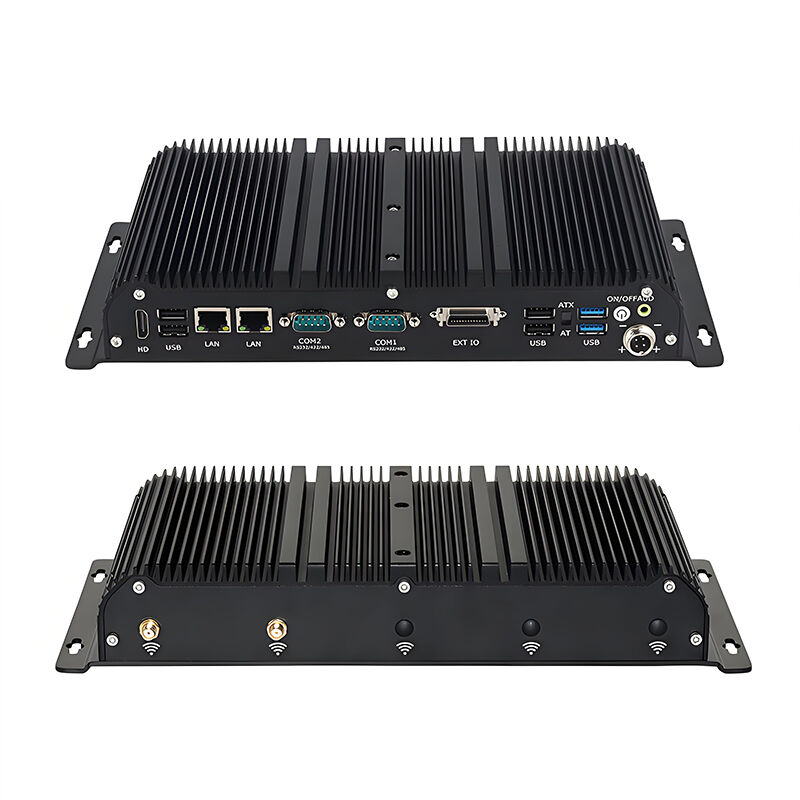

Interface Description of Industrial PC with Intel Core i5-1235U Processor

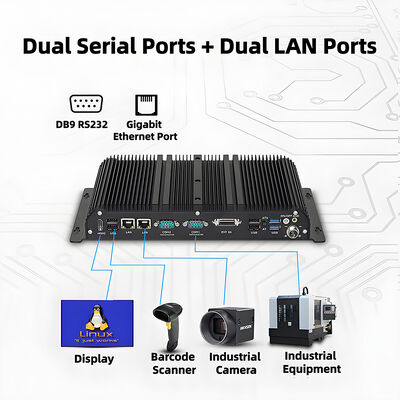

Comprehensive full-range interfaces integrate industrial communication, video output, wired network and wireless connectivity all in one unit. Front panel interfaces:
1*HD-MI, 4*USB 2.0, 2*LAN ports, 2*COM ports.2*Gigabit Ethernet ports + 2*industrial COM serial ports for seamless connection with PLCs and industrial instruments.

1*EXT IO port integrating 4 sets of 3-wire COM, 10 GPIO channels and 1 remote switch for convenient remote operation. 1*ATX/AT dual-mode boot toggle switch,

2*USB 3.0 ports with hierarchical layout of multiple USB specifications. 1*4-pin aviation power socket with anti-loosening and anti-vibration design to ensure stable

power supply under harsh factory conditions. 1*power button, 1*audio jack.
Rear panel interfaces: 5*Wi-Fi antenna ports for Wi-Fi/Bluetooth/3G/4G/5G modules to support flexible wireless networking.

Industrial Mini Pc Intel Core I5 1235U Processor Two 2.5GbE RJ45 Intel I225V LAN 2DB9 COM 1EXT IO FANLESS I5 Computer 2
