Industrial Fanless Pc Intel Core I5 10310U Processor 2 GbE RJ45 Realtek 8111H LAN 2 DB9 COM Win10 WES10 LINUX MINI Computer

Industrial Fanless Pc Intel Core I5 10310U Processor 2 GbE RJ45 Realtek 8111H LAN 2 DB9 COM Win10 WES10 LINUX MINI Computer

Brand Name:	Helor PC
Model Number:	X58
MOQ:	1 Piece
Price:	367.01usd
Delivery Time:	15 work days
Payment Terms:	T/T,D/A,D/P,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Ce, Rohs, Sgs

Processor System:

Core I5-10310U Processor

Network:

2*GbE RJ45 Realtek 8111H

Expansion Slot:

1*Mini-PCIe Slot (supports Half/full-size Card, With SIM Card Holder), Compatible With 3G/4G Modules, Wi-Fi & Bluetooth

Power Input:

12V-19V

Dimensions:

193.9 X 127 X 57.2 Mm

Storage Temperature:

-30℃ To +70℃

Operating Temperature:

-20℃ To +60℃

Storage Humidity:

10%~90%, Non-condensing

Packaging Details:

Color Box

Supply Ability:

50000 pieces/month

Highlight:

Industrial fanless PC Intel Core i5

Mini computer with dual RJ45 LAN

Fanless industrial PC Windows Linux

Product Description

Industrial Fanless Pc Intel Core I5 10310U Processor

2 GbE RJ45 Realtek 8111H LAN 2 DB9 COM Win10 WES10 LINUX MINI Computer

Product Introduction of Industrial PC with Intel Core i5 10310U Processor

Powered by Intel Core i5-10310U processor featuring 4 cores and 8 threads, this unit handles multiple parallel tasks simultaneously. It runs at a base frequency of

1.70 GHz with a maximum turbo frequency up to 4.40 GHz, instantly boosting clock speeds to meet peak computing demands under sudden heavy workloads. Its

standard TDP is 15W, with a wide adjustable power range from 10W (TDP-down) to 25W (TDP-up). The processor dynamically regulates power consumption and

frequency based on equipment heat dissipation and service loads, adapting to various cooling setups for industrial hosts, portable devices, edge gateways and more.

It supports hardware watchdog and diskless boot functions. Designed for round-the-clock stable operation within an operating temperature range of -20℃ to +60℃,

it withstands storage humidity from 10% to 90% non-condensing. It delivers reliable performance in harsh environments such as equipment rooms and workshops

with outstanding durability. Desktop and wall-mount installation options are available.

Product Specifications of Industrial PC with Intel Core i5 10310U Processor

Processor System	Core i5-10310U processor
Memory	2*DDR4 SO-DIMM, up to 32GB
Storage	1M.2 2280 (supports SATA and NVMe protocols) 12.5" HDD/SSD bay
Front Interfaces	1power switch, 4USB 3.0 ports, 4USB 2.0 ports, 2RS-232 COM ports
Rear Interfaces	2Wi-Fi antenna ports, 1audio jack, 1microphone jack, 2Gigabit Ethernet ports, 1HD-MI port, 1VGA/HD-MI port, 1*DC power port
OS Support	Win 7/8/10, WES 7/10 and Linux
Operating Temperature	-20℃ ~ +60℃
Installation Methods	Supports desktop and wall-mount installation.

Product Details of Industrial PC with Intel Core i5 10310U Processor

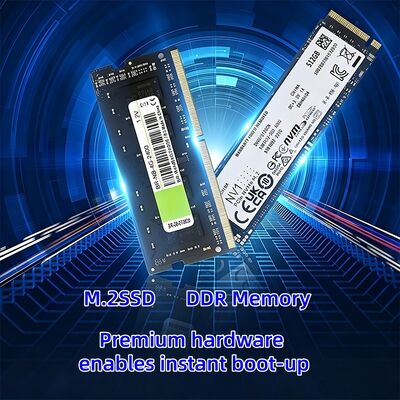

The Intel Core i5-10310U processor delivers smooth and consistent operation. Equipped with two DDR4 SODIMM slots expandable up to 32GB maximum memory, it

effortlessly handles heavy workloads including edge computing, multi-program concurrent operation and data acquisition without lag or stuttering. Storage options include

one high-speed M.2 2280 slot compatible with both NVME and SATA SSD protocols, plus a 2.5-inch HDD/SSD bay, enabling a high-performance system drive paired

with a large-capacity data drive to balance fast read/write speeds and ample storage space. A Mini-PCIe expansion slot supports half-height and full-height cards with

an integrated SIM card holder, allowing installation of WiFi, Bluetooth, 3G and 4G cellular modules. It is compatible with Win7/8/10, WES 7/10 and Linux operating

systems, matching software environments for industrial control equipment, self-service terminals and gateways, eliminating the need for OS replacement during legacy

equipment upgrades. Dual-display output via HDMI and VGA ports supports both mirror and extended display modes.

Industrial Fanless Pc Intel Core I5 10310U Processor 2 GbE RJ45 Realtek 8111H LAN 2 DB9 COM Win10 WES10 LINUX MINI Computer 0

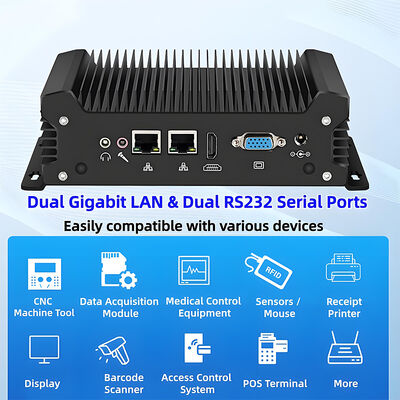

Application Scenarios of Industrial PC with Intel Core i5 10310U Processor

This industrial PC boasts universal cross-industry compatibility and is widely deployed across numerous sectors, including smart devices, digital signage, vending

machines, industrial sites, entertainment venues, commercial premises, financial institutions, monitoring systems and medical equipment. Its flexible expandability

also supports deployment in additional intelligent industrial fields.

Industrial Fanless Pc Intel Core I5 10310U Processor 2 GbE RJ45 Realtek 8111H LAN 2 DB9 COM Win10 WES10 LINUX MINI Computer 1

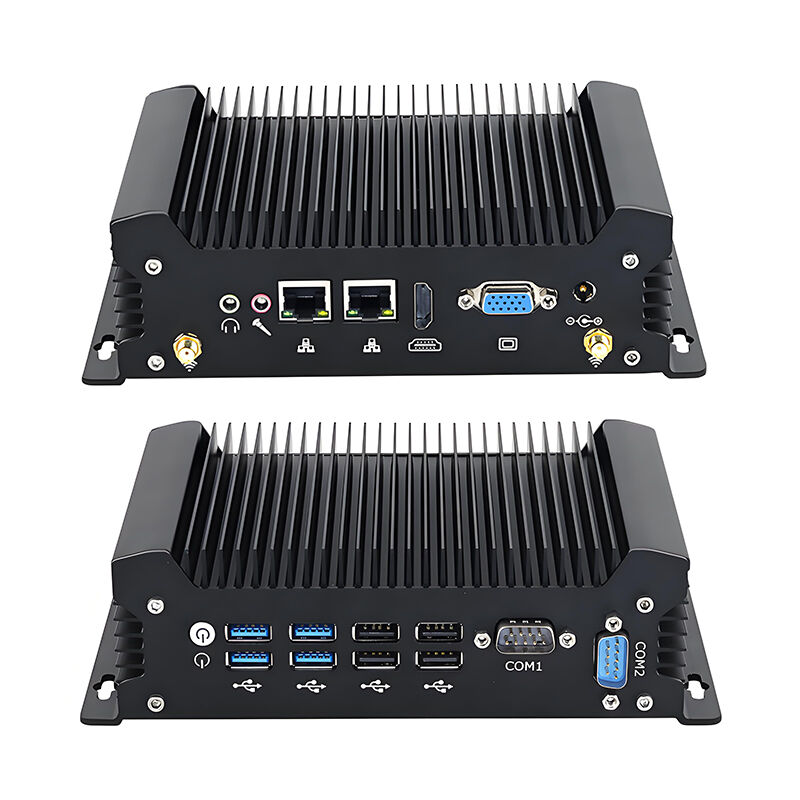

Interface Description of Industrial PC with Intel Core i5 10310U Processor

Equipped with comprehensive versatile interfaces to fulfill diverse industrial requirements: Front panel interfaces: 1*power switch, 4*high-speed USB 3.0 ports +

4*general USB 2.0 ports for simultaneous connection of scanners, card readers, cameras, data collectors and other peripherals to enable efficient data transmission;

2*industrial COM serial ports (COM1 + COM2) supporting RS232 communication;

Rear panel interfaces: 2*WiFi antenna ports for wireless WiFi and Bluetooth connectivity; dedicated headphone and microphone jacks suited for voice broadcast,

intercom terminals and multimedia self-service equipment; dual Gigabit Ethernet ports enabling network segmentation and isolation for industrial gateways, monitoring

networks and internal/external network separation to enhance secure and stable network management.Dual Gigabit LAN ports plus HD-MI + VGA dual video outputs

support mirror and extended dual-screen display, catering to split-screen monitoring and multi-view operation on control consoles. 1 dedicated power input port is also

provided.

Industrial Fanless Pc Intel Core I5 10310U Processor 2 GbE RJ45 Realtek 8111H LAN 2 DB9 COM Win10 WES10 LINUX MINI Computer 2
