Soft Router Intel Celeron J6426 Processor 4 Ethernet Ports Dual Serial Ports 2 USB3.0 4 USB2.0 DDR4 Win10 Win11 Linux Industrial Mini Pc

Soft Router Intel Celeron J6426 Processor 4 Ethernet Ports Dual Serial Ports 2 USB3.0 4 USB2.0 DDR4 Win10 Win11 Linux Industrial Mini Pc

Brand Name:	Helor PC
Model Number:	X30
MOQ:	1 Piece
Price:	175.88usd
Delivery Time:	15 work days
Payment Terms:	T/T,D/A,D/P,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Ce, Rohs, Sgs

Processor System:

Intel Celeron J6426 Processor

Material:

Aluminum Alloy

Storage Temperature:

-30°C ~ +70°C

Operating Temperature:

-10℃ ~ +60℃

Storage Humidity:

5% ~ 95% Relative Humidity, Non-condensing

Motherboard Size:

120*120 Mm

Power Input:

DC12V 5A

OS Support:

Win10/11, Linux

Packaging Details:

Color Box

Supply Ability:

50000 pieces/month

Highlight:

Soft Router Intel Celeron J6426

Industrial Mini PC with Ethernet Ports

Dual Serial Ports Mini PC

Product Description

Soft Router Intel Celeron J6426 Processor 4 Ethernet Ports Dual Serial Ports

2 USB3.0 4 USB2.0 DDR4 Win10 Win11 Linux Industrial Mini Pc

Product Introduction of Soft Router Equipped with Intel Celeron J6426 Processor

Powered by Intel Celeron J6426 processor with 4 cores and 4 threads, it delivers smooth multitasking performance. The CPU runs at a base frequency of 2.0GHz for

long-term stable operation. It features ultra-low 10W standard TDP with minimal heat generation. The fanless aluminum chassis enables silent heat dissipation; low

power consumption avoids overheating and CPU throttling. It is ideal for unattended scenarios such as software routers, industrial control, self-service terminals and

edge networking, delivering consistent computing power under wide temperature ranges.

It supports scheduled power-on and PXE diskless boot for convenient mass remote maintenance. Built-in hardware watchdog enables automatic reset to prevent

system crashes and network disconnections. DC 12V 5A DC power input ensures stable voltage output without voltage drop. Wide temperature tolerance enables

24/7 stable operation from -10℃ to 60℃; storage humidity ranges from 5% to 95% non-condensing. It maintains reliable performance in harsh environments like

server rooms and workshops with outstanding durability. Both desktop and wall-mounted installation are supported.

Product Specifications of Soft Router with Intel Celeron J6426 Processor

Processor System	Intel Celeron J6426 processor
Memory	1*DDR4 SO-DIMM, up to 16GB
Storage	1MSATA, 1SATA3.0
Network	4*INTEI-I225V/I226V2.5G LAN card, supports Wake-on-LAN & network boot.
Expansion Slot	1*M.2 Slot, supports WiFi and Bluetooth modules
Front Interfaces	1independent power switch button, 2USB3.0 ports, 4USB2.0 ports, 1RS485 serial port, 1*RS232 serial port
Rear Interfaces	42.5G Ethernet ports, 1DP port, 1HD-MI port, 1DC power port
OS Support	Win10/11, Linux
Operating Temperature	-10℃ ~ +60℃
Installation Methods	Supports desktop and wall-mount installation.

Product Details of Soft Router with Intel Celeron J6426 Processor

This Intel Celeron J6426 industrial PC delivers stable and smooth performance. It adopts 1*DDR4 SODIMM memory slot with a maximum capacity of 16GB, meeting

high memory requirements for multi-tasking software routing and edge computing. Two storage slots (1*mSATA + 1*SATA3.0) provide large-capacity data storage.

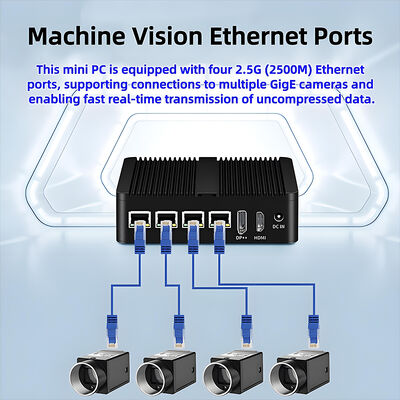

An M.2 expansion slot is reserved for optional WiFi & Bluetooth wireless modules. Network equipped with 4*Intel I225V / I226V 2.5G Ethernet controllers, supporting

Wake-on-LAN and PXE network boot. Dual video ports (HD-MI 2.0 + DP 1.4) support synchronous and asynchronous dual-display output for split-screen maintenance

and monitoring. Fully compatible with Win10/11 and Linux operating systems.

Soft Router Intel Celeron J6426 Processor 4 Ethernet Ports Dual Serial Ports 2 USB3.0 4 USB2.0 DDR4 Win10 Win11 Linux Industrial Mini Pc 0

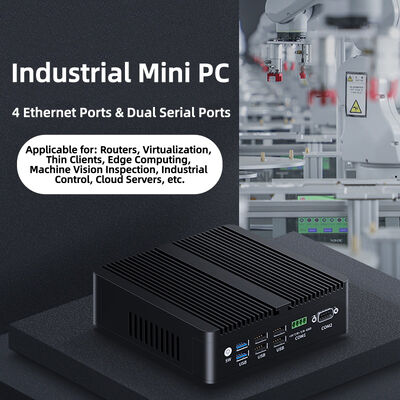

Application Scenarios of Soft Router with Intel Celeron J6426 Processor

This industrial PC with Intel Celeron J6426 processor is universally applicable across all industries. It is widely used in smart devices, digital signage, vending machines,

industrial workshops, entertainment venues, commercial establishments, financial institutions, surveillance systems, medical equipment and other fields.

Soft Router Intel Celeron J6426 Processor 4 Ethernet Ports Dual Serial Ports 2 USB3.0 4 USB2.0 DDR4 Win10 Win11 Linux Industrial Mini Pc 1

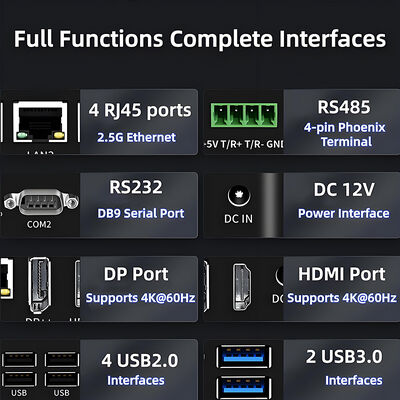

Interface Description of Soft Router with Intel Celeron J6426 Processor

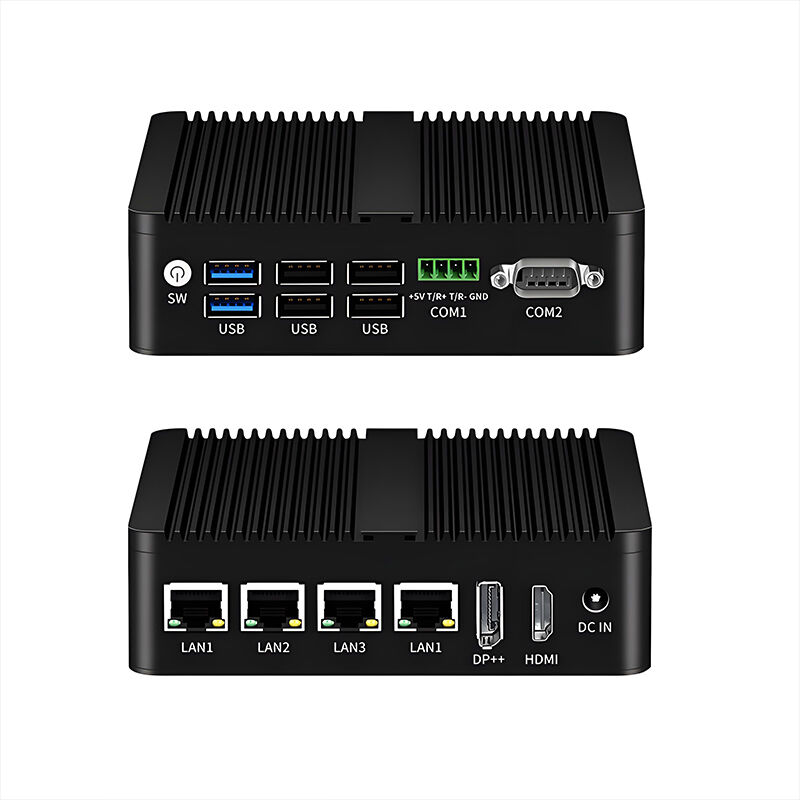

This device comes with abundant interfaces to meet daily operation demands. Front panel interfaces: 1*independent power switch button, 2*USB3.0 ports, 4*USB2.0

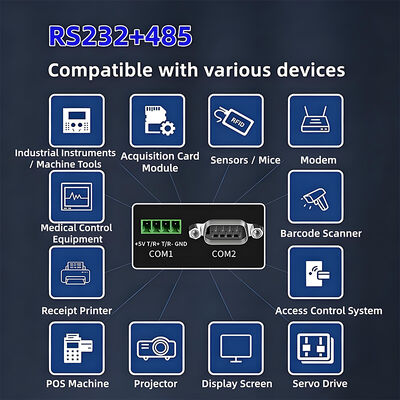

ports, 1*RS485 serial port, 1*RS232 serial port. Dual industrial serial ports realize seamless connection with industrial equipment;

Rear panel interfaces: 4*2.5G Ethernet ports, 1*DP port, 1*HD-MI port, 1*DC power port.

Soft Router Intel Celeron J6426 Processor 4 Ethernet Ports Dual Serial Ports 2 USB3.0 4 USB2.0 DDR4 Win10 Win11 Linux Industrial Mini Pc 2
