Industrial Mini PC With Intel AlderLake N100 Processor Dual LAN Ports 4 Serial Ports 1 HD-MI 6 USB Ports DDR4 Fanless Computer

Industrial Mini PC With Intel AlderLake N100 Processor Dual LAN Ports 4 Serial Ports 1 HD-MI 6 USB Ports DDR4 Fanless Computer

Brand Name:	Helor PC
Model Number:	X30
MOQ:	1 Piece
Price:	135.23usd
Delivery Time:	15 work days
Payment Terms:	T/T,D/A,D/P,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Ce, Rohs, Sgs

Processor System:

Intel Alder Lake-N Series Processor, N100

Memory:

1*DDR4 SO-DIMM, Up To 16GB

Storage:

1*M.2 2280 (PCIe 3.0 2X / SATA 3.0 Auto-adaptive), 1*SATA 3.0 With 4-pin Mini Power Connector

Front Interfaces:

1*Power Switch, 1*ATX Power-on Resume, 2 *COM Ports (COM1/2 Support RS232/485), 1*Audio Port

Rear Interfaces:

1*DC 12V Power Port, 1*HD-MI 2.1, 1*DP 1.4, 2*USB 3.0, 1*CLR CMOS (BIOS Reset Button), 2*COM Ports (COM3/4 Support RS232), 2*LAN Ports, 2*USB 2.0, 1*GHOST (one-key System Recovery Button), 1*SW (switch Extension Port).

Oth Sides Of The Chassis:

1*Wi-Fi Antenna Port On Each Side

OS Support:

Win10, Win11, Linux

Operating Temperature:

0℃ ~ +60℃

Packaging Details:

Color Box

Supply Ability:

50000 pieces/month

Highlight:

Fanless Industrial Mini PC

DDR4 Industrial Mini PC

Product Description

Industrial Mini PC With Intel AlderLake N100 Processor Dual LAN Ports 4 Serial Ports

1 HD-MI 6 USB Ports DDR4 Fanless Computer

Product Description of Industrial PC Equipped with Intel N100 Processor

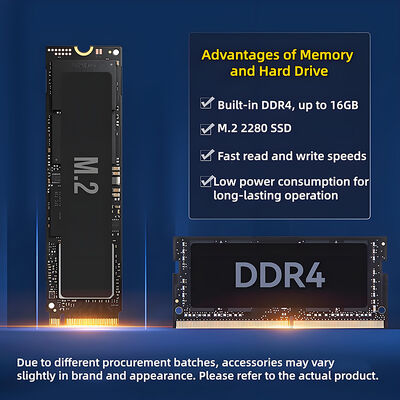

This industrial mini PC is powered by the Intel N100 processor. It features 1*SO-DIMM slot for 1*DDR4 memory, supporting up to 16GB. Equipped with RTL8111H dual

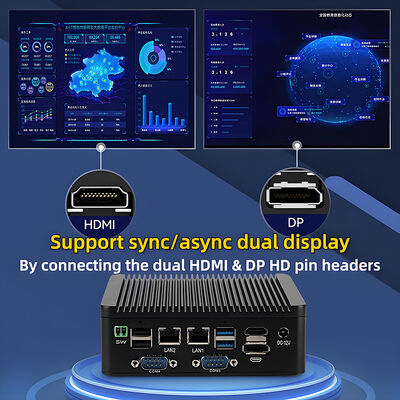

Ethernet ports and 1*M.2 2280 slot (auto-adaptive PCIe 3.0 2X / SATA 3.0) for storage. It supports synchronous and asynchronous dual display output via HD-MI 2.1 +

DP 1.4, with 4K@60Hz resolution.

Product Specifications of Industrial PC with Intel N100 Processor

Processor System	Intel Alder Lake-N Series Processor, N100
Memory	1*DDR4 SO-DIMM, up to 16GB
Storage	1M.2 2280 (PCIe 3.0 2X / SATA 3.0 Auto-adaptive) 1SATA 3.0 with 4-pin mini power connector
Front Interfaces	1Power switch, 1ATX power-on resume, 2 COM ports (COM1/2 support RS232/485), 1Audio port
Rear Interfaces	1DC 12V power port, 1HD-MI 2.1, 1DP 1.4, 2USB 3.0, 1CLR CMOS (BIOS reset button), 2COM ports (COM3/4 support RS232), 2LAN ports, 2USB 2.0, 1GHOST (one-key system recovery button), 1SW (switch extension port).
Both sides of the chassis	1*Wi-Fi antenna port on each side
OS Support	Win10, Win11, Linux
Operating Temperature	0℃ ~ +60℃

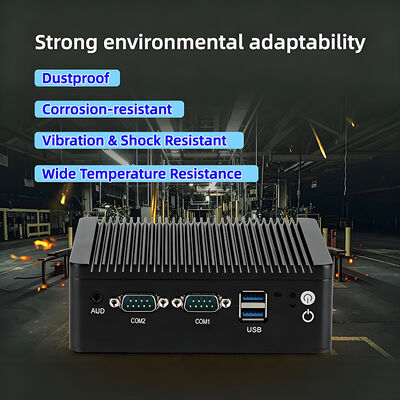

Product Details of Industrial PC with Intel N100 Processor

This industrial mini PC is powered by the Intel N100 processor, featuring 4 cores and 4 threads with a boost clock up to 3.4 GHz. It operates at an ultra-low power

consumption of 6W and generates minimal heat, fully meeting industrial application requirements. Built with a dustproof full-metal enclosure and adopting a fanless grille

cooling system, it runs silently and delivers excellent operational stability. As an industrial-grade host, it boasts strong adaptability to diverse working environments.

Industrial Mini PC With Intel AlderLake N100 Processor Dual LAN Ports 4 Serial Ports 1 HD-MI 6 USB Ports DDR4 Fanless Computer 0

Application Scenarios of Intel N100 Industrial PC

This industrial mini PC with Intel N100 processor features a wide range of application scenarios. It is widely used in industrial automation, mechanical industry,

metallurgical industry, power industry, chemical industry, automotive engineering, commercial vending machines, digital signage, transportation systems and other fields.

Industrial Mini PC With Intel AlderLake N100 Processor Dual LAN Ports 4 Serial Ports 1 HD-MI 6 USB Ports DDR4 Fanless Computer 1

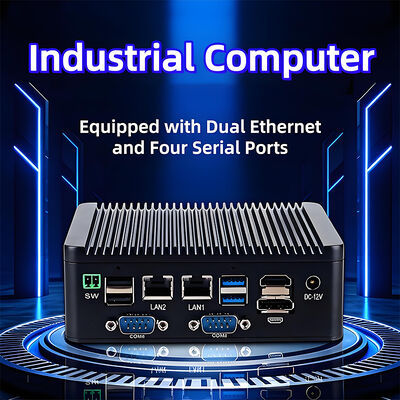

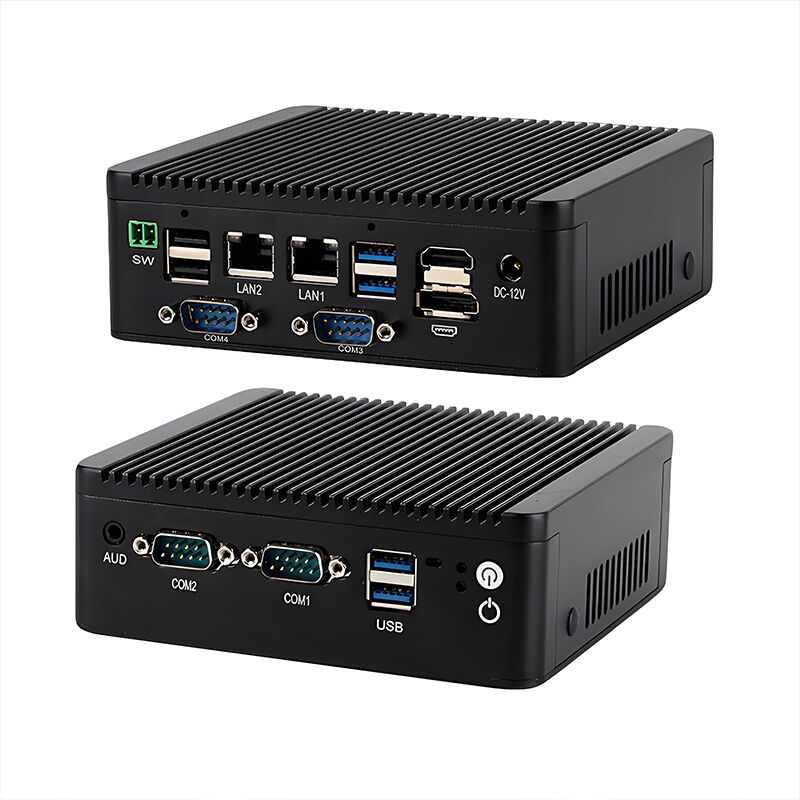

Interface Description of Intel N100 Industrial PC

Rich and expandable interfaces fully meet various industrial requirements. Front Interfaces:1*Power switch, 1* ATX power-on resume, 2*COM ports (COM1/2

support RS232/485), 1*Audio port. Rear Interfaces:1*DC 12V power port, 1*HD-MI 2.1, 1*DP 1.4, 2*USB 3.0, 1*CLR CMOS (BIOS reset button), 2*COM ports

(COM3/4 support RS232), 2*LAN ports, 2*USB 2.0, 1*GHOST (one-key system recovery button), 1*SW (switch extension port). One WIFI antenna port is

equipped on each side of the chassis.

Industrial Mini PC With Intel AlderLake N100 Processor Dual LAN Ports 4 Serial Ports 1 HD-MI 6 USB Ports DDR4 Fanless Computer 2
