Created with Pixso. 2LAN 2COM Fanless Industrial PC Intel Core i5 Processor Aluminum Chassis Computer

2LAN 2COM Fanless Industrial PC Intel Core i5 Processor Aluminum Chassis Computer

Brand Name: Helor PC
Model Number: X31G 2LAN 2COM
MOQ: 1 Piece
Price: $77.00 ~ $120.00 / Piece/Pieces
Delivery Time: 7-15 work days
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
Ce, Rohs, Sgs
Memory:
1*DDR3L SODIMM RAM, Max Up To 8GB
Hard Disk:
MSATA SSD *1; 2.5’’ SATA SSD/HDD*1, Expandable Dual Hard Drives
Extension:
1× Half-height Mini-PCIe
Ethernet:
Realtek 8111F Gigabit Ethernet*2, Support Wake-on LAN
Display:

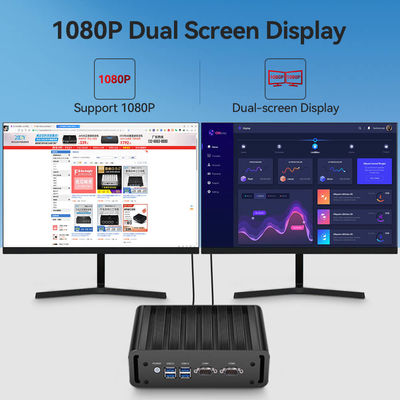

1*HDMI, 1*VGA, Resolution: 1920*1080(Dual-screen Display)
Dimension:
178*126*55mm
Packaging Details:
Carton Box
Supply Ability:
500 Pieces
Highlight:

2LAN Industrial PC

,

2COM Industrial PC

,

Aluminum Chassis Industrial PC

Product Description

2LAN 2COM Fanless Industrial PC Intel Core i5 Processor Aluminum Chassis Computer



Fanless Industrial PC Description:



This fanless industrial mini pc is equipped with a high-performance Intel Core processor with a turbo frequency of up to 2.6 GHz. The 2-core 4-thread architecture gives it powerful computing power, making it easy to handle complex industrial programs and multi-task parallel processing.

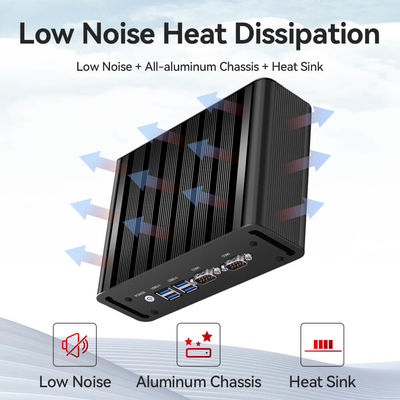

The fanless aluminum alloy chassis design, combined with the exquisite heat dissipation structure, greatly improves the heat dissipation efficiency, ensuring that mini desktop computer can maintain a stable low temperature even under long-term high-load operation, and is not afraid of the harsh test of the industrial environment.

Rich interface configuration, covering high-speed USB, HDMI, VGA, COM, etc., to meet your diverse needs for device connection, whether it is connecting industrial sensors, displays, or other peripherals, can be easily achieved.



Fanless Industrial PC Specification:



CPU Intel Core i5-4200U 2 Cores 4 Threads Processor, 2.60 GHz Max Turbo Frequency, 3 MB Cache, 15W TDP, 22NM Lithography
Hard Disk 1*mSATA SSD, 1*2.5’’ SATA SSD/HDD
Memory 1*DDR3L SODIMM RAM, Max Up To 8GB
Power DC 12V 5A/60W (AC TO DC, 100~240V)
Operating System Windows 7, Windows 8, Windows 10, Linux, Ubuntu, CentOS, etc.
Material Aluminum Alloy Chassis
Installation VESA/ Wall Mount/ Desktop
I/O Interface 4*USB3.0, 2*COM, 2*LAN, 1*VGA, 1*HDMI, 1*DC, 1*AUD, 1*Switch
Working temperature -20℃ ~ +65℃
Storage temperature -20℃ ~ +75℃
Working humidity 5%~95% (relative humidity, no condensation)



Fanless Industrial PC Details:

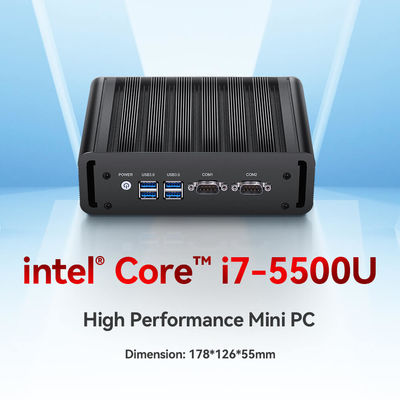

In terms of dimension, this industrial fanless computer is only 180mm*128mm*55mm. Compared with the iPhone 13 Pro, it is small but powerful. Its small and compact appearance allows it to be easily integrated into various environments, which has good portability. You can easily carry it to different workplaces and quickly set up a working environment.



2LAN 2COM Fanless Industrial PC Intel Core i5 Processor Aluminum Chassis Computer 0





This mini desktop computer supports 2.5-inch SATA hard disk expansion and mSATA solid-state drive expansion. Faster reading and writing speeds and more stable data storage.

As a industrial pc, it also equipped with single-channel DDR3L memory, up to 8G, data reading and processing are fast, program startup, file loading and other operations are completed instantly, which can bring you a smooth and smooth use experience and reduce the phenomenon of jamming.



2LAN 2COM Fanless Industrial PC Intel Core i5 Processor Aluminum Chassis Computer 1





The metal bottom case of this fanless industrial mini computer, as a solid shield for the computer, not only provides solid physical protection, but also effectively shields electromagnetic interference, ensuring the stable operation of the internal precision components. In complex industrial environments or diverse office scenes, it is like a loyal guard, guarding the core of the computer.
Although the hard drive, memory, and WiFi module in the picture need to be purchased separately, this also provides you with space for personalized customization, which can be flexibly matched according to your own needs.



2LAN 2COM Fanless Industrial PC Intel Core i5 Processor Aluminum Chassis Computer 2





Rich interface configuration, covering high-speed USB, HDMI, VGA, COM, etc., to meet your diverse needs for device connection, whether it is connecting industrial sensors, displays, or other peripherals, can be easily achieved.



2LAN 2COM Fanless Industrial PC Intel Core i5 Processor Aluminum Chassis Computer 3
