ARM RK3568 Embedded Industrial PC Android DDR4 8G With Dual LAN Four COM 4K HD

Name: ARM RK3568 Embedded Industrial PC Android DDR4 8G With Dual LAN Four COM 4K HD
Brand: Shenzhen Helor Cloud Computer Co., Ltd.
SKU: X103
Price: 169.00 USD
Availability: InStock

Brand Name:	Helor PC
Model Number:	X103
MOQ:	1 Piece
Price:	Negotiable
Delivery Time:	15 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Ce, Rohs, Sgs

CPU:

Rockchip RK3568 4 Core 64-bit Processor, Up To 2.0GHz

GPU:

ARM G52 2EE, Supports OpenGL ES1.1/2.0/3.2, OpenCL2.0, Vulkan1.1

RAM:

Onboard DDR4 Max Up To 8GB

Storage:

1x EMMC, Up To 256GB; 1x SATA3.0 HDD / SSD

Packaging Details:

Carton Box

Supply Ability:

500 Pieces

Highlight:

RK3568 Embedded Industrial PC

ARM Embedded Industrial PC

Product Description

ARM RK3568 Embedded Industrial Mini PC Android DDR4 8G With Dual LAN Four COM 4K HD

ARM RK3568 Industrial Mini PC Description:

This industrial mini PC is equipped with a high-performance ARM Cortex-A55 processor with excellent computing power and powerful multi-thread processing capability. It also supports the latest ARMv8.2-A instruction set, which provides faster data processing and more efficient code execution.

interfaces and expansion capabilities, including USB 3.0, HDMI 2.0, MIPI CSI-2 and other interfaces, which can meet the needs of various application scenarios. At the same time, it also supports a variety of operating systems, including Android, Linux, etc., which can provide developers with a more flexible and convenient development environment.

Overall, the ARM RK3568 Industrial Mini PC is a high-performance and multi-functional PC that can provide strong support for a variety of application scenarios with its outstanding performance and powerful features.

ARM RK3568 Industrial Mini PC Details:

ARM RK3568 Industrial Mini PC Details
CPU	Rockchip RK3568 4 Core 64-bit Processor, up to 2.0GHz
GPU	ARM G52 2EE, Supports OpenGL ES1.1/2.0/3.2, OpenCL2.0, Vulkan1.1, embedded high-performance 2D acceleration hardware
NPU	Built-in neural network processor NPU, 1.0TOPS @INT8 performance; Support Caffe / Mxnet / TensorFlow / TF Lite / ONNX / Darknet models; Provide AI development tools: support fast model transformation.
Memory	Onboard DDR4 2G, Max Up To 8GB
Hard Disk	1x eMMC 16GB (32GB / 64GB / 128GB / 256GB optional); 1x SATA3.0 HDD / SSD
OS	Android 11.0, OTA remote upgrade, Watchdog
Ethernet	2LAN 10Mbps / 100Mbps (1RJ45 LAN or 2*LAN optional); 2.4GHz Support WiFi 802.11 b / g / n / ac protocol or 5GHz Dual-band WiFi (optional); Support Bluetooth function, V2.1 + EDR / Bluetooth 3.0 / 3.0 + HS / 4.1 / BLE (optional); Support 4G / 5G function, 5G-NR-NSA / 5G-NR-SA / LTE-TDD / LTE-FDD / TD-SCDMA / EDGE / GPRS / GSM (optional)
GPS	Built-in GPS/BD module, sensitivity: -162dBm, receiving frequency: 1575.42MHz; Satellite channels: 20 channels Positioning accuracy: <10m (optional)
Display Ports	1eDP Port (eDP1.3 support 25601600 60fps output), support 3.3V / 5V power supply 1LVDS interface (single / dual, 6-bit / 8-bit), support 1080P 60fps output, support 3.3V / 5V / 12V power supply 1HDMI OUT 2.0 support 4K 60fps output (optional) 1MiPi interface (support MiPi 25601600 60fps output) upport three-screen asynchronous display function
Audio	1Speaker Output (218W 4R), 1Headset Output, 2Microphone Input
RTC	Built-in real-time clock power supply battery, support timer on, timer off.
I/O Interface	2USB 3.0, 2Gigabit LAN (Or 1LAN Optional), 4COM RS232 (COM3-4: Support RS485 JP Optional); 1HDMI,1AUD In / Out, 1SIM, 4GPIO (Motherboard: 8GPIO), 1DC, 1*Power Button
Expansion Slot	1Mini PCIe Slot (For 4G/5G LTE Module); 1SIM Slot
Power	1*DC12V
Size	192mm127mm40mm
Suitable Temperatur	Operating Temperature: -10℃ to +70℃, Storage Temperature: -20℃ to +70℃, Storage Humidity: 10% ~ 80% (relative humidity, no condensation)

ARM RK3568 Industrial Mini PC Processor:

ARM RK3568 Industrial Mini PC Application:

This mini PC is equipped with rich interfaces, with strong anti-shock and anti-interference capabilities, which can support the stable and efficient operation of various devices, and is widely used in various fields of life.

ARM RK3568 Embedded Industrial PC Android DDR4 8G With Dual LAN Four COM 4K HD 1

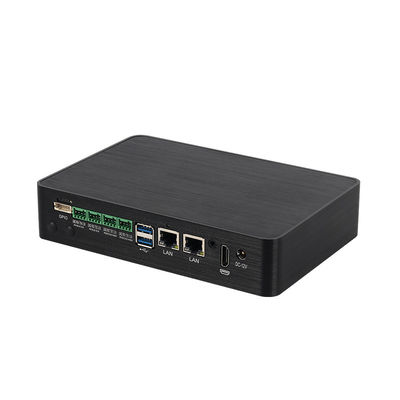

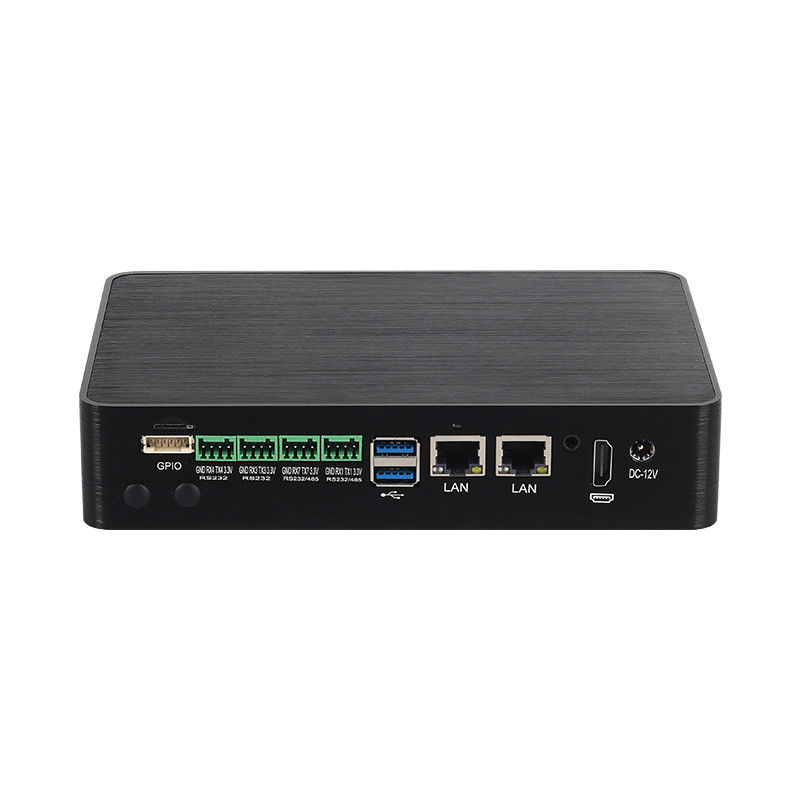

ARM RK3568 Industrial Mini PC Interface Demonstration:

ARM RK3568 Embedded Industrial PC Android DDR4 8G With Dual LAN Four COM 4K HD 2

ARM RK3568 Embedded Industrial PC Android DDR4 8G With Dual LAN Four COM 4K HD 3

ARM RK3568 Embedded Industrial PC Android DDR4 8G With Dual LAN Four COM 4K HD 4
