AMD Ryzen R3 4300U Processor Mini Pc With 1 RJ45 Gigabit Ethernet Port 2 HD-MI 1 Type-C For Home Entertainment Business Office And Gaming

AMD Ryzen R3 4300U Processor Mini Pc With 1 RJ45 Gigabit Ethernet Port 2 HD-MI 1 Type-C For Home Entertainment Business Office And Gaming

Brand Name:	Helor PC
Model Number:	X72
MOQ:	1 Piece
Price:	122.62usd
Delivery Time:	15 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Ce, Rohs, Sgs

CPU:

AMD Ryzen R3 4300U

LED Indicator:

Power(White)/Lan(Green/Orange)

Audio:

1*3.5mm Combo Audio Jack

Cooling:

All-copper Silent Cooling Fan

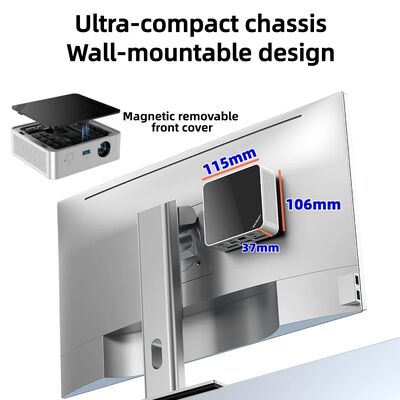

Dimensions:

115*106*37mm

Weight:

Approx. 310g

Material:

Eco-friendly PC+ABS Plastic Chassis

Other:

1*Power Button, 1*Security Lock, Support Wake-on-LAN And Power-on On AC Restore

Packaging Details:

Carton Box

Supply Ability:

50000 pieces/month

Product Description

AMD Ryzen R3 4300U Processor Mini Pc With 1 RJ45 Gigabit Ethernet Port
2 HD-MI 1 Type-C For Home Entertainment Business Office And Gaming

Product Introduction of Mini PC

This high-performance Ryzen mini PC is a compact mini host equipped with an adaptive gigabit high-speed Ethernet port, dual-channel DDR4 3200MHz memory with

2*SO-DIMM slots, dual full-size M.2 storage slots and abundant I/O ports. It is tailored for daily office work, multimedia audio & video playback, light graphic design and

small industrial control terminal scenarios. Built-in adaptive gigabit RJ45 Ethernet port meets the demands of daily office file transmission, audio & video streaming, and

data exchange between small devices. It features triple video outputs including 2*HD-MI 2.0 ports and full-function 1*Type-C port, supporting up to 4K@60Hz resolution.

The device enables simultaneous triple-screen display or independent extended displays for three screens, ideal for multi-station office work, split-screen monitoring, and

multi-window synchronous operation for light design tasks.

Product Specifications of Mini PC

CPU	AMD Ryzen R3 4300U
GPU	AMD Radeon Graphics, (up to 1400MHz)
Memory	2DDR4 3200MHz (Dual-channel, 2SO-DIMM,Max 32GB)
Storage	4M.2 2280 PCIE3.0 &1SATA3 (Supports up to4TB) 4M.2 2242 PCIE3.0 &1SATA3 (Supports up to2TB)

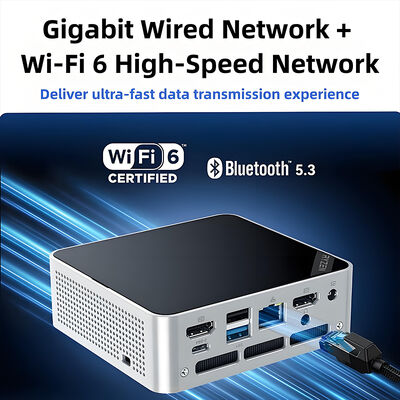

Network	Wireless Wi-Fi 6/Bluetooth 5.3 (RTL9851), Gigabit Wired Ethernet Port
Front Interfaces	1Power button, 2USB 3.2 Gen 2 (10Gbps)
Rear Interfaces	1Kensington lock slot, 1Full-function Type-C (USB Gen2 + PD power delivery + DP 4K@60Hz), 2HD-MI 2.0 (4K@60Hz), 1USB 3.2 Gen 2 (10Gbps), 1USB 2.0, 1Gigabit RJ45 Ethernet port, 1DC power input, 13.5mm combo audio jack for headset & microphone.
Cooling System	All-copper silent cooling fan
Power Input	19V/3.42A
OS Support	Win10, Win11

CPU Performance of Mini PC

Powered by AMD Ryzen 3 4300U high-efficiency low-power processor with 4 cores and 4 threads. It runs at a base frequency of 2.7GHz with a maximum boost

frequency of 4.7GHz. The low-power design delivers an excellent balance of performance and energy efficiency. Integrated AMD Radeon™ Graphics support dual HD

display output. Multi-screen monitoring and digital signage requirements can be fulfilled without a dedicated discrete graphics card. It is a perfect choice for industrial

control, embedded systems and light office users who require low power consumption, multi-screen display and long-term stable operation.

Application Scenarios of Mini PC

This mini desktop PC fits a wide range of multi-functional usage scenarios, including home & office use, design & study, gaming and home theater streaming to satisfy

diverse demands.

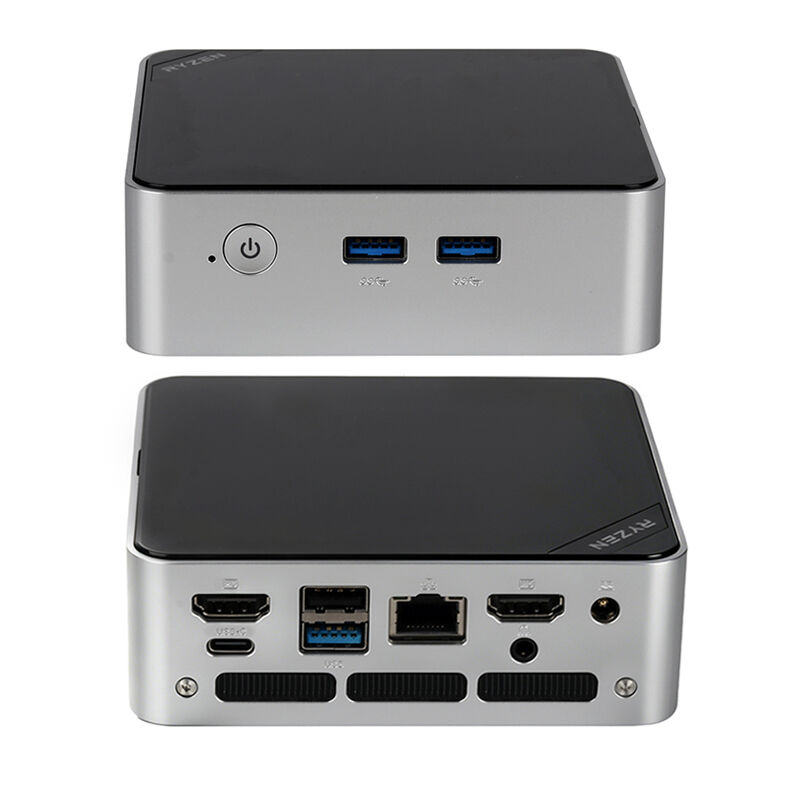

Port Description of Intel Gaming PC Mini PC

This micro computer comes with a full range of comprehensive I/O ports. Front ports: 1*Power button, 2*USB 3.2 Gen 2 (10Gbps); Rear ports: 1*Kensington lock slot,

1*Full-function Type-C (USB Gen2 + PD power delivery + DP 4K@60Hz), 2*HD-MI 2.0 (4K@60Hz), 1*USB 3.2 Gen 2 (10Gbps), 1*USB 2.0, 1*Gigabit RJ45 Ethernet

port, 1*DC power input, 1*3.5mm combo audio jack for headset & microphone.

Internal Structure Display of Mini PC

The whole machine adopts a split modular internal layout with neatly divided hardware zones.
