Intel Core I7 1270P Processor Mini PC With 2 LAN 2 HD-MI 1 DP 1 Type-C For Daily Office Security Monitoring

Intel Core I7 1270P Processor Mini PC With 2 LAN 2 HD-MI 1 DP 1 Type-C For Daily Office Security Monitoring

Brand Name:	Helor PC
Model Number:	X78
MOQ:	1 Piece
Price:	443.43usd
Delivery Time:	15 work days
Payment Terms:	Western Union,T/T,D/P,D/A,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Ce, Rohs, Sgs

Processor System:

Core I7 1270P

Material:

Aluminum Alloy

Main Unit Dimensions:

170*126*51.5 Mm

Storage Temperature:

-30°C ~ +70°C

Operating Temperature:

-20°C ~ +60°C

Storage Humidity:

10% ~ 90% @ 30°C, Non-condensing

Packaging Details:

Carton Box

Supply Ability:

50000 pieces/month

Product Description

Intel Core I7 1270P Processor Mini PC With 2 LAN 2 HD-MI

1 DP 1 Type-C For Daily Office Security Monitoring

Product Introduction of Router PC

This soft router is equipped with the Intel Core 1270P processor. It is a multi-functional network device integrating high-speed network transmission, multi-peripheral

expansion, high-definition display output and wireless networking, specially built for enterprise office, industrial control and multimedia office scenarios. It comes with

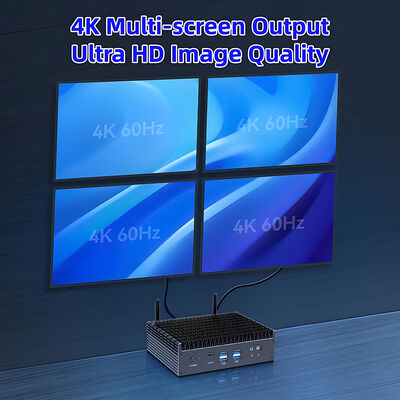

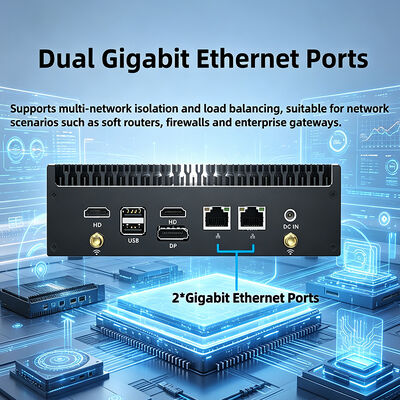

2*Intel i225/i226 2.5G Gigabit Ethernet ports, ideal for office data exchange and small-scale network forwarding scenarios. It supports independent multi-screen display

across four monitors, equipped with 2*HD-MI 2.0 ports, 1*DP 1.4 port and 1*Thunderbolt 4 Type-C video port. The four interfaces can be directly connected to monitors

simultaneously, enabling split-screen work on 4 displays, suitable for multi-station office, industrial visualization, monitoring dispatch and other multi-screen scenarios.

Product Specifications of Router PC

Processor System	Core I7 1270P
Memory	2*DDR4 SODIMM, up to 64GB
Network	2*GbE RJ45 Intel i225/i226 2.5G Network card
Storage	1M.2 2280 slot (Supports NGFF 2280 / NVMe 2280 hard drives), 1M.2 2280 slot supporting NVMe 2280 storage drives, 1*HDD / SSD
Front Interfaces	1power switch, 1Thunderbolt 4-supported Type-C port, 4USB 3.0 ports, 1audio input/output jack
Rear Interfaces	2HD-MI ports, 2USB 2.0 ports, 1DP port, 2LAN ports, 1*DC power interface
Expansion Slots	1M.2 2230 slot, supports Wi-Fi 802.11b/g/n/ac and Bluetooth 4.2, pre-installed with 3165AC wireless module as standard Motherboard supports expansion of 2RS232 serial ports, COM1 can be optionally upgraded to RS485 2*USB 2.0 pin headers
OS Support	Win10, Win11, Linux
Power Input	19V 3.42A
Installation Method	Desktop and Wall mount Supported

CPU Performance of Router PC

This mini soft router adopts the 12th Gen Intel Core i7-1270P processor with 12 cores and 16 threads, boasting a maximum turbo frequency of 4.80 GHz. It delivers

powerful performance to handle heavy office work, multi-task concurrency and creative design workloads with ease. It is fitted with 18MB Intel Smart Cache for higher

efficiency in data reading and scheduling.

Application Scenarios of Router PC

This mini computer covers a wide range of use cases, widely deployed in industrial automation, factory workshop equipment, financial hardware, shopping mall devices,

outdoor monitoring networks, computer room routing and many other industries.

Interface Description of Router PC

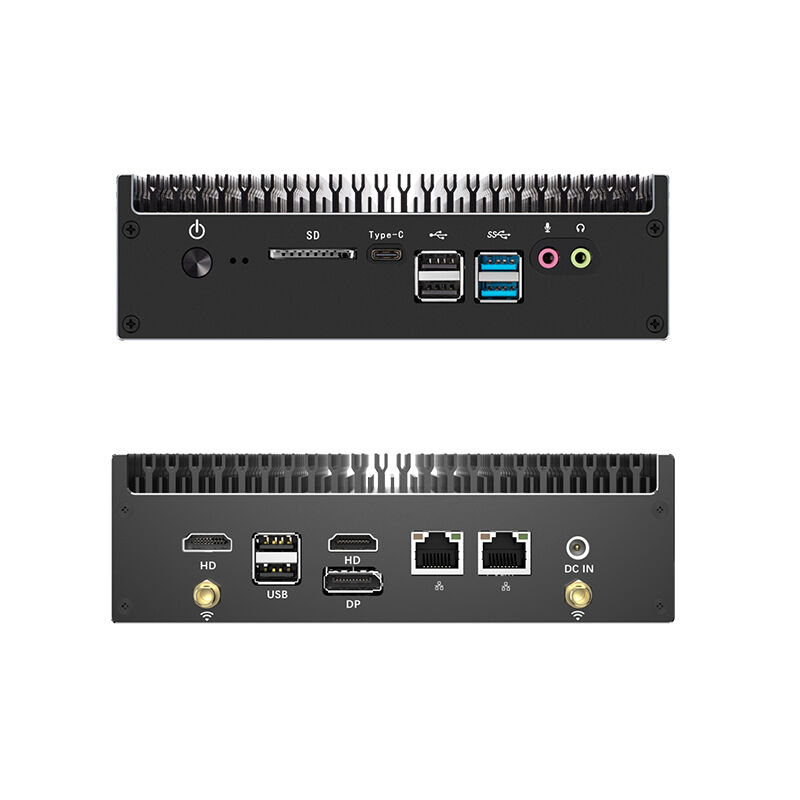

This soft router PC features abundant interfaces to easily meet diverse demands. Front panel interfaces: 1*power switch, 1*Thunderbolt 4-supported Type-C port, 4*USB

3.0 ports, 1*audio input/output jack; Rear panel interfaces: 2*HD-MI ports, 2*USB 2.0 ports, 1*DP port, 2*LAN ports, 1*DC power interface.

Expansion Functions of Router PC

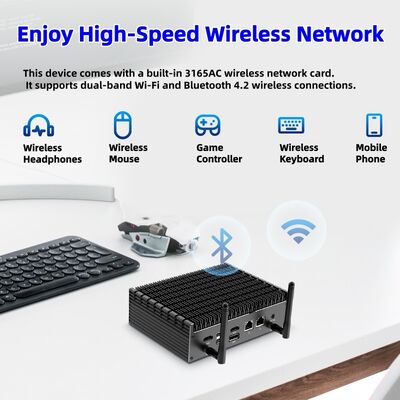

The Intel Core 1270P processor platform includes 1*built-in M.2 2230 slot, pre-installed with a 3165AC wireless module by default. It supports 802.11b/g/n/ac dual-band

Wi-Fi and Bluetooth 4.2 for fast wireless connectivity, meeting wireless networking needs for office and workshop devices as well as pairing Bluetooth peripherals. The

motherboard reserves expansion headers for 2*RS232 serial ports. The COM1 port can be optionally upgraded to RS485 industrial serial port for stable connection with

PLCs and sensor acquisition devices, perfect for automated production lines and industrial data collection scenarios. 2*built-in USB 2.0 pin headers are reserved on the

board for external expansion panels and acquisition peripherals, flexibly adding extra USB channels to support simultaneous connection of multiple devices.
