Mini Router With Intel Core I5 1235U Processor 6 LAN Ports And 2 10G SFP Optical Ports For Enterprise Offices And Factories

Name: Mini Router With Intel Core I5 1235U Processor 6 LAN Ports And 2 10G SFP Optical Ports For Enterprise Offices And Factories
Brand: Shenzhen Helor Cloud Computer Co., Ltd.
SKU: X113
Price: 483.58 USD
Availability: InStock

Brand Name:	Helor PC
Model Number:	X113
MOQ:	1 Piece
Price:	483.58usd
Delivery Time:	15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Ce, Rohs, Sgs

Processor System:

Intel Core I5 1235U

Dual-screen Output:

1*HD-MI, 1*Type-C

Heat Dissipation:

Fanless Silent Cooling With Metal Fin Heat Conduction

Power Supply:

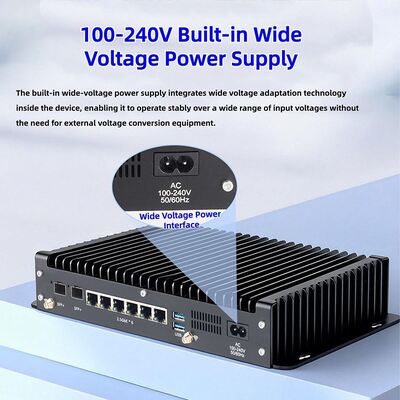

AC, 100-240V, 50/60Hz

Expansion:

1*M.2 2232 WiFi, 1*M.2 3042 Slot For 3G/4G Module With Onboard SIM Card Slot (3052-form-factor 5G Module Optional)

Dimensions:

299*175*51mm (L×W×H), Weight Around 2.1kg

Packaging Details:

Carton Box

Supply Ability:

50000 pieces/month

Product Description

Mini Router With Intel Core I5 1235U Processor 6 LAN Ports

And 2 10G SFP Optical Ports For Enterprise Offices And Factories

Product Introduction of Router PC

This soft router is equipped with Intel Core i5 1235U processor. It is a multi-functional network device integrating high-speed network transmission, multi-peripheral

expansion, high-definition display output and wireless network access, specially designed for monitoring computer rooms, enterprise offices and industrial networking

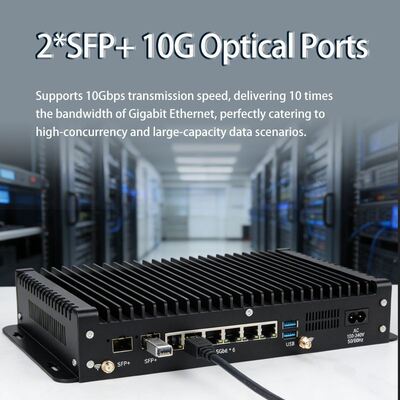

scenarios. The device comes with 6*2.5G electrical ports and 2*SFP+ 10G optical ports. Multiple independent network segments can be divided to connect internal

terminals and external fiber optic lines separately. It fits network deployment scenarios including soft routing, firewall, traffic control and computer room data forwarding.

It can stably connect a large number of wired terminals such as computers, NAS storage and surveillance cameras, greatly raising the overall network bandwidth and

transmission ceiling, and upgrading network infrastructure for computer rooms and factory areas.

Product Specifications of Router PC

Processor System	Intel Core i5 1235U
Base Frequency	1.3GHz
Memory	2*DDR5 SODIMM slots, support up to 96GB memory
Hard Drive	1*M.2 NVMe 2280 slot, Custom DIY packages optional, please consult store customer service for details
Ethernet	2*RJ45 10/100/1000Mbps Inte i211/i210 Gigabits Ethernet
Graphics	Intel Iris Xe Graphics Eligible
Network	2SFP 10G Optical Ports + 6RJ45 2.5G Ethernet Ports
System	Win10, Win11, Linux, Ubuntu
Front Interfaces	1CONSOLE port, 2USB3.0, 1HD-MI, 1Type-C, 1*power switch button
Rear Interfaces	2WIFI antenna ports, 2FP 10G optical ports, 62.5G (2500M) Ethernet ports, 2USB3.0, 1*AC power jack.

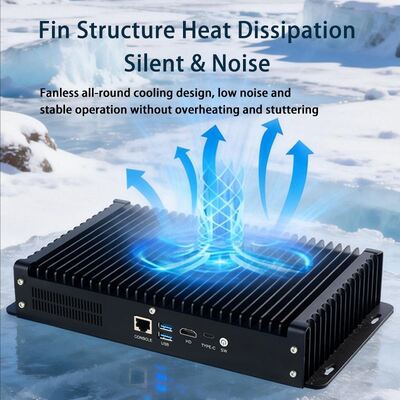

Environmental Adaptability of Router PC

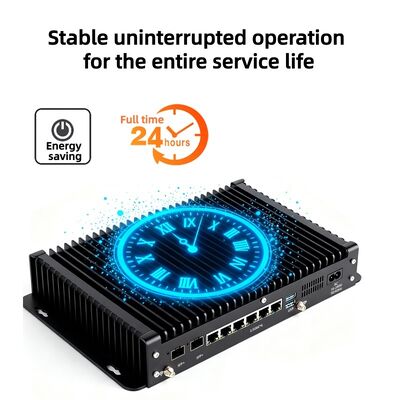

This mini soft router boasts outstanding environmental adaptability. It features wide temperature tolerance, corrosion resistance, shock and vibration resistance, as

well as stable long-term continuous operation, making it suitable for harsh on-site factory environments.

Mini Router With Intel Core I5 1235U Processor 6 LAN Ports And 2 10G SFP Optical Ports For Enterprise Offices And Factories 0

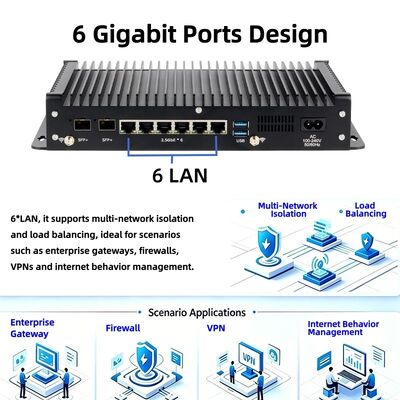

Application Scenarios of Router PC

This mini computer is widely used in various industries, including industrial automation, workshop equipment, finance, automotive, smart transportation, power systems

and more.

Mini Router With Intel Core I5 1235U Processor 6 LAN Ports And 2 10G SFP Optical Ports For Enterprise Offices And Factories 1

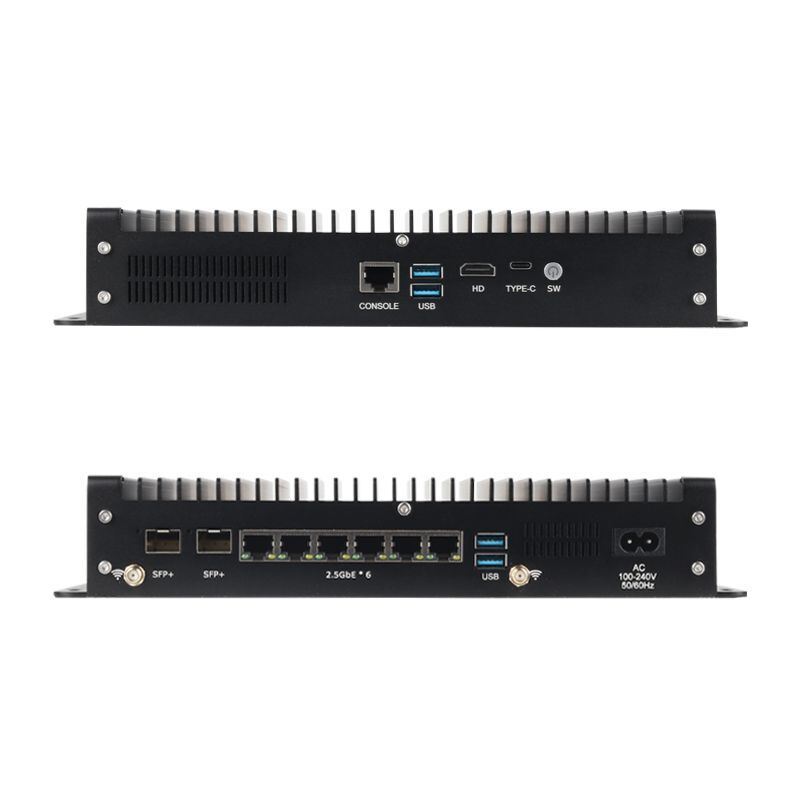

Interface Description of Router PC

This soft router PC is equipped with abundant interfaces for seamless device connection. Front interfaces: 1*CONSOLE port, 2*USB3.0, 1*HD-MI, 1*Type-C, 1*power switch button;

Rear interfaces: 2*WIFI antenna ports, 2*FP 10G optical ports, 6*2.5G (2500M) Ethernet ports, 2*USB3.0, 1*AC power jack.

Mini Router With Intel Core I5 1235U Processor 6 LAN Ports And 2 10G SFP Optical Ports For Enterprise Offices And Factories 2

Expansion Functions of Router PC

Powered by Intel Core 1235U processor, this device is built with 1*M.2 2232 slot for optional WIFI wireless modules to quickly expand wireless network coverage

and meet wireless access demands for office and workshop devices.It also has 1*M.2 3042 slot with native support for 3G/4G communication modules and an

on-board SIM card slot, enabling cellular mobile network access after inserting a SIM card. A 3052-form-factor 5G module is available as an optional upgrade for the

cellular module. High-speed 5G mobile network is ideal for industrial remote networking in outdoor locations or sites without fixed broadband.

Mini Router With Intel Core I5 1235U Processor 6 LAN Ports And 2 10G SFP Optical Ports For Enterprise Offices And Factories 3
