| Brand Name: | Helor PC |
| Model Number: | X86 |
| MOQ: | 1 Piece |
| Price: | 193.15usd |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,D/A,L/C,D/P,Western Union |
This unit adopts the Intel Pentium 4415U processor with dual cores and four threads for smooth multitasking. Its base frequency is 2.10 GHz, fully meeting daily
operation requirements. It is compatible with mainstream operating systems including Win7, Win10, Ubuntu 16.04 and CentOS 7.0. Fitted with a 64M AMI BIOS,
it works well for various industrial control and networking applications. The built-in hardware watchdog supports adjustable reset time from 0 to 255 seconds. It can

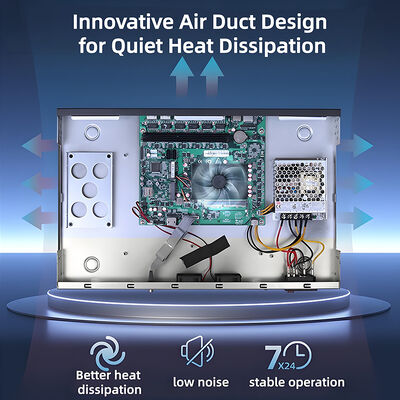

automatically reboot the device upon anomalies to ensure 7*24-hour uninterrupted operation. Equipped with a dedicated CPU heatsink and fan, it delivers efficient
heat dissipation and maintains stable performance during long-hour operation. It supports wide-range AC input from 110V to 250V, resisting unstable power supply.

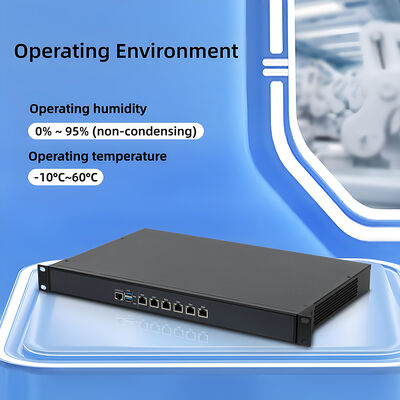

The operating temperature ranges from -10℃ to 60℃, and operating humidity is 0%~95% (non-condensing). It runs reliably in harsh environments such as computer
rooms and workshops with outstanding durability.
|
CPU |
Intel Pentium 4405U processor |
|
Network Adapters |
6*Intel I225 2.5G
|
|
Memory |
1*DDR4 SO-DIMM slot, maximum capacity up to 32GB |
|
Storage |
2*SATA, 1*MSATA |
|
Expansion |
1*MINI-PCIE |
|
Front ports |
1*Console port, 2*USB 3.0 ports, 2*LED indicators (power and hard drive status), 6*Gigabit Ethernet ports |
|
Rear ports |
1*VGA port, 1*power button, 1*power inlet. |
|
OS |
win7, win10, Linux ubantu16.04, centOS 7.0 |
|
Heat Dissipation Mode |
Built-in CPU heatsink and fan |
|
Power Input |
AC 110V~250V |
This device is powered by the Intel Pentium 4405U processor, delivering stable and smooth performance. It supports 6*Intel I225 2.5G network adapters for seamless
high-speed network operation. It features 1*DDR4 SO-DIMM memory slot with a maximum capacity of 32GB, enabling effortless multitasking. For storage, it comes
with 2*SATA ports and 1*mSATA slot. You can combine multiple drives to create ample storage as needed.Equipped with 1*Mini PCIe expansion slot, it allows easy
hardware installation and offers strong expandability.
Powered by Intel Pentium 4415U processor, this device has a TDP of only 15W, and the TDP can be reduced to 10W via TDP-down mode. It greatly cuts power
consumption and heat generation. While ensuring long-term stable operation, it features low noise and low energy consumption, ideal for devices running continuously
such as soft routers, industrial controllers and mini PCs. It is also applicable to all-in-one virtualization systems, new retail and other scenarios.
![]()
This device powered by Intel Pentium 4405U processor boasts a wide range of application scenarios. A single unit fits multiple industries with low power consumption
and stable long-term operation, covering four core usage demands: network routing, multi-system virtualization, industrial control and new retail self-service terminals.
![]()

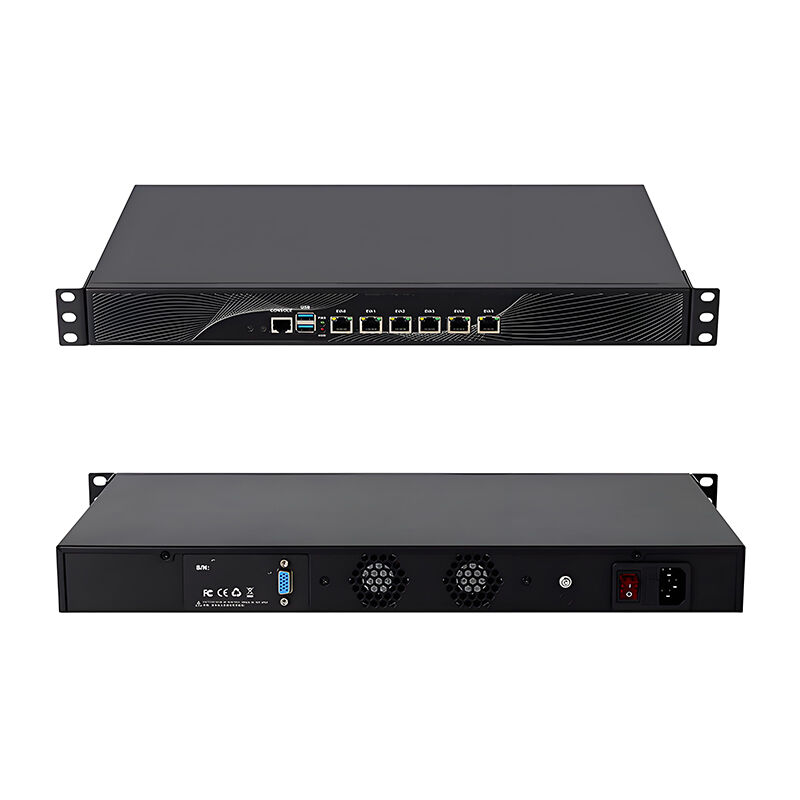

This device comes with a rich set of interfaces to meet daily usage requirements. On the front panel, there are 1*Console port for management, 2*USB 3.0 ports,
2*LED indicators (power and hard drive status), and 6*Gigabit Ethernet ports. These allow quick connection of external devices, serial port debugging and data
transmission, while enabling you to easily monitor the operating status of the device. The rear panel is equipped with 1*VGA port, 1*power button and 1*power inlet.
It supports stable power supply and video output, catering to connection and debugging needs for industrial control, routing and other applications. With a well-designed
layout, the device boasts strong expandability.
![]()
|
