Intel N5105 Processor Firewall Mini PC With 4 Lan 1 COM

Intel N5105 Processor Firewall Mini PC With 4 Lan 1 COM

Brand Name:	Helor PC
Model Number:	X30
MOQ:	1 Piece
Price:	147.17usd
Delivery Time:	15 work days
Payment Terms:	T/T,D/P,D/A,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Ce, Rohs, Sgs

Processor System:

Intel Celeron N5105

Memory:

Dual Channel DDR4 2933 MT/s, Up To 32GB

Storage:

1* SATA 3.0, 1*M.2NVME

Network:

4* Intel I225AT Gigabit Ethernet

OS:

Win 10/11, LINUX

HDMI:

Maximum Resolution 4K

Function:

PXE Boot, Wake-on-LAN, And Auto Power On

BIOS:

System BIOS: AMI BIOS, CMOS Battery

Front Interfaces:

1*CLR-CMOS (BIOS Reset Function), 1*USB2.0, 1*Power Button, 2*USB3.0, 1*HD-MI, 1*SIM Card Slot

Rear Interfaces:

4*LAN Ports, 1*DC 12V Power Jack, 1*RJ45 COM Port

Packaging Details:

Color Box

Supply Ability:

50000 pieces/month

Highlight:

Soft Router Mini PC

High Performance Mini PC

Product Description

Intel N5105 Processor Firewall Mini PC With 4 Lan 1 COM

Soft Router Product Introduction

This mini router is equipped with 4*Intel I225AT Gigabit Ethernet Controllers, ideal for software routers, industrial gateways, firewalls and multi link networking devices. It supports

dual channel DDR4 2933MT/s high speed memory via two SODIMM slots, with a maximum capacity of 32GB for ultra-smooth multitasking. For storage, it features 1*SATA3.0 and

1*M.2 NVME interface delivering up to 10Gb/s maximum transfer speed. Flexible storage combinations satisfy demands for high speed operation and mass data storage simultaneously.

Soft Router Product Specifications

Processor System	Intel Celeron N5105
Power Input	DC 12V
Power Consumption	Power Consumption
Hardware Monitoring	Supports CPU/Motherboard/HDD temperature detection
Operating Temperature	-20℃ ~ 60℃
Working Humidity	0% ~ 90% relative humidity, non condensing
Storage Temperature	-40℃ ~ 80℃
Storage Humidit	0% ~ 90% relative humidity, non condensing

Soft Router CPU Performance

This mini PC router adopts Intel Celeron N5105 processor, a 4 core 4 thread low power CPU with a base frequency of 2.00GHz. It ensures stable performance for software

traffic control and long running industrial background services. Equipped with 4MB Intel Smart Cache, it enables faster program loading and data access response.

Soft Router Compact Form Factor

The LAN router features a compact chassis, supporting both desktop placement and wall mount installation. Space saving and easy to deploy, it fits industrial cabinets, compact

server rooms and other space limited scenarios to lower deployment difficulties.

Soft Router Reliable 24/7 Operation

This mini PC adopts an all metal chassis for optimized heat dissipation and anti-interference capability. It supports 24/7*365 continuous stable operation.

Soft Router Application Scenarios

This network router fits multiple industries, widely deployed in intelligent security, industrial control, small offices, server rooms and more fields.

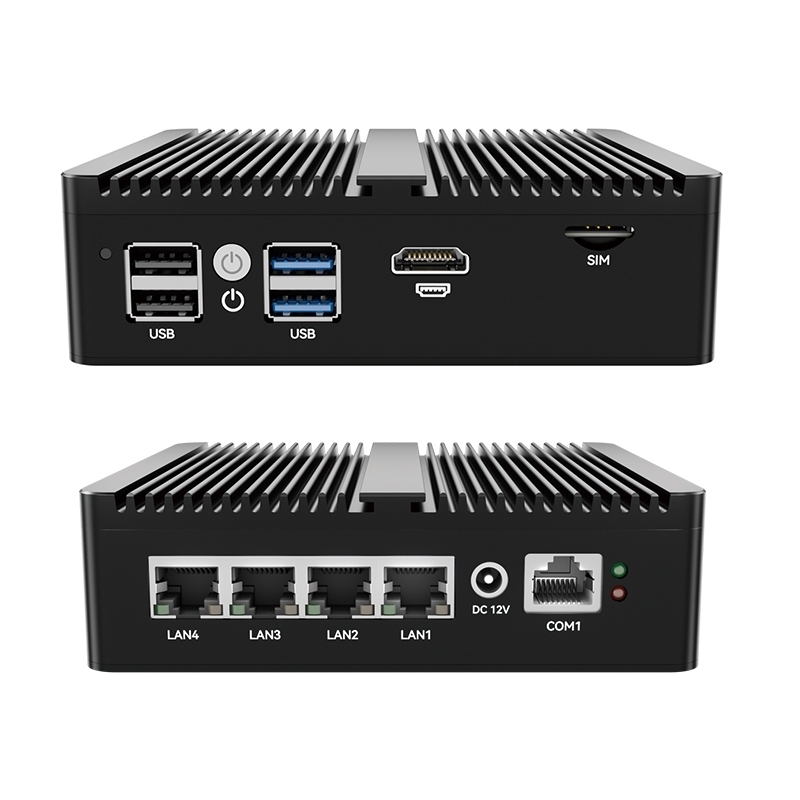

Soft Router Interface Description

This computer router comes with abundant interfaces to meet diverse usage requirements. Front Panel Interfaces: 1*CLR-CMOS (BIOS reset function), 1*USB2.0, 1*Power Button, 2*USB3.0, 1*HD-MI, 1*SIM Card Slot;

Rear Panel Interfaces: 4*LAN Ports, 1*DC 12V Power Jack, 1*RJ45 COM Port.
