Soft Router Appliance With Intel Pentium 4415U Processor 6 Intel I225 Gigabit LAN Ports 4 USB3.0 Ports High performance Mini PC

Soft Router Appliance With Intel Pentium 4415U Processor 6 Intel I225 Gigabit LAN Ports 4 USB3.0 Ports High performance Mini PC

Brand Name:	Helor PC
Model Number:	X91
MOQ:	1 Piece
Price:	114.18usd
Delivery Time:	7-15 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Ce, Rohs, Sgs

Processor:

Intel Pentium 4415U

System Memory:

1*DDR4 SODIMM Slot, Max Supported Memory Up To 16GB

Network:

6*Intel I211 Gigabit Ethernet Controllers, Supporting Wake-on-LAN And PXE Boot From LAN

Front I/O Ports:

1*Power Button, 4*USB3.0, 1*HD-MI, 1*VGA, 1*RJ45 RS232 COM Port

Rear I/O Ports:

1*DC 12V Power Jack, 1*Power LED Indicator, 1*HDD Activity LED Indicator, 6*LAN Ports

Storage:

1*Mini PCIe Slot For MSATA SSD, 1*SATA 3.0 Interface For SSD/HDD (Supported By Motherboard, Not Available For Installation Due To Chassis Restriction)

OS:

Win 10/11， LINUX

Operating Temperature:

-10℃-70℃

Packaging Details:

Color Box

Supply Ability:

50000 pieces/month

Highlight:

High performance Mini PC

Soft Router Appliance Mini PC

Product Description

Mini PC With Intel Pentium 4415U Processor 6 Intel I225 Gigabit LAN Ports

4 USB3.0 Ports High performance Soft Router Appliance

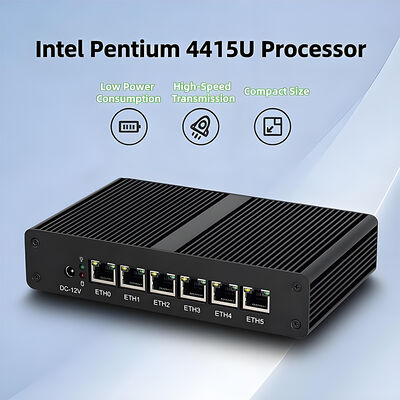

Product Introduction of Intel Pentium 4415U Processor

This Intel Pentium 4415U processor is equipped with one DDR4 SODIMM memory slot supporting up to 16GB RAM, 1*Mini PCIe slot compatible with mSATA SSD,

and 1*SATA 3.0 interface for SSD or HDD (supported by the motherboard but unavailable for installation due to chassis limitations). It features 6*Intel I225 network

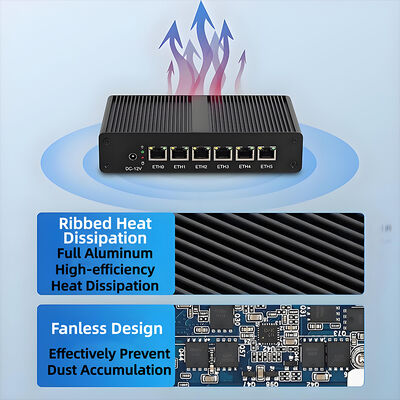

adapters with PXE diskless boot and Wake-on-LAN functions. The device adopts an all-aluminum finned passive cooling structure with a fanless design, which effectively

avoids internal dust accumulation and operational noise generated by cooling fans.

Product Specifications of Intel Pentium 4415U Processor

Processor	Intel Pentium 4415U
System Memory	1*DDR4 SODIMM slot, max supported memory up to 16GB
Network	6*Intel I211 Gigabit Ethernet controllers, supporting Wake-on-LAN and PXE boot from LAN
Front I/O Ports	1Power Button, 4USB3.0, 1HD-MI, 1VGA, 1*RJ45 RS232 COM Port
Rear I/O Ports	1DC 12V Power Jack, 1Power LED Indicator, 1HDD Activity LED Indicator, 6LAN Ports
Storage	1Mini PCIe slot for mSATA SSD, 1SATA 3.0 interface for SSD/HDD (Supported by motherboard, not available for installation due to chassis restriction)
OS	Win 10/11, LINUX
Operating Temperature	-10℃-70℃

Product Details of Intel Pentium 4415U Processor

This Intel Pentium 4415U processor supports multiple operating systems including Win10/11, Linux, iKuai, OpenWrt and ESXi.

OpenWrt is pre-installed by default. Please leave a message or contact customer service if you need to install other operating systems.

Performance Introduction of Intel Pentium 4415U Processor

Equipped with Intel Pentium 4415U processor featuring dual-core and four-thread configuration, this device easily handles multitasking with a base frequency of 2.3GHz

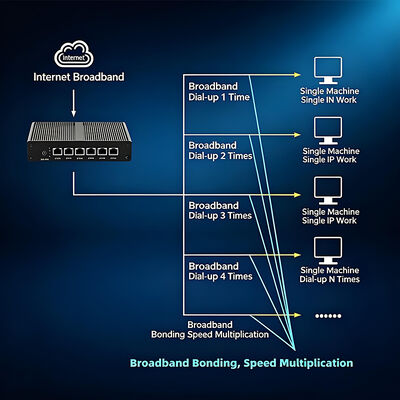

for enhanced processing speed. As a soft router, it supports multi-PPPoE dial-up per single WAN line, which relies on local ISP’s broadband permission for multi-dial

access; the function will be unavailable if the ISP does not authorize such service. Available bandwidth can be aggregated to multiply network speed. Internet access

via assigned PPPoE account authentication facilitates centralized management and improves network security through identity verification.

Interface Specification of Intel Pentium 4415U Processor

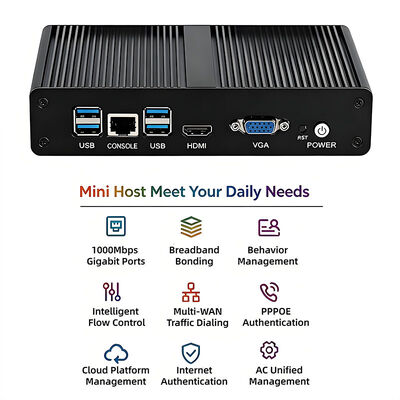

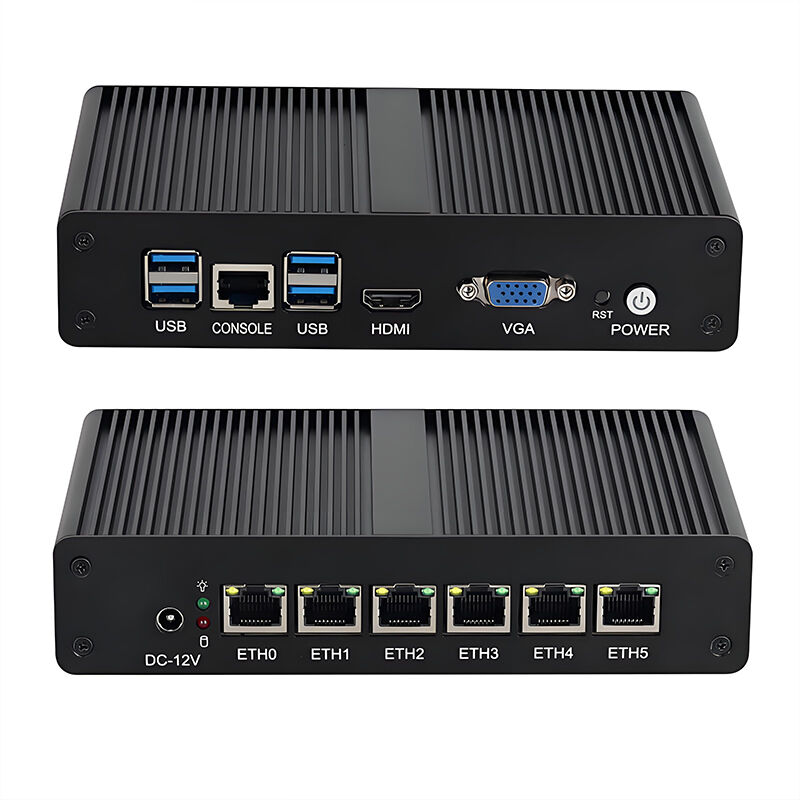

The unit is equipped with abundant interfaces to satisfy regular application requirements. Front Panel Interfaces:1*Power Button, 4*USB3.0, 1*HD-MI, 1*VGA,

1*RJ45 RS232 COM Port. Rear Panel Interfaces:1*DC 12V Power Jack, 1*Power LED Indicator, 1*HDD Activity LED Indicator, 6*LAN Ports.
