In-tel Core i5 1135G7 Processor mini pc With 6 In-tel I225 Network card Lan 1 HD-MI 4 USB 3.1 soft router host

Brand Name:	Helor PC
Model Number:	X56
MOQ:	1 Piece
Price:	326.85usd
Delivery Time:	7-15 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Ce, Rohs, Sgs

Processor:

In-tel Core I5 1135G7, 4 Cores, 8 Threads Base, Frequency 2.4GHz

Memory:

2*SODIMM DDR4 3200MT/s, Up To 64GB Supported

Storage Support:

1*M.2 2242, 1*SATA 3.0

Front I/O Ports:

4*USB3.1, 1*HM-DI, 1*RS232/RS485 (RJ45 Ports)

Rear I/O Ports:

1*DC 12V, 6*LAN, 2*WiFi WiFi Antenna Holes

Network Chip:

In-tel I225 Network Adapter Supports Diskless Boot And Wake-on-LAN, WOL

Expansion Slots:

1*MINI-PCIE (Supports PCIe And USB 3G/4G Communication Modules）

Operating System:

Supports IKuai, OpenWrt, ESXi. Compatible With Multi-system And Virtual Machine Deployment. For Other Systems, Please Contact Customer Service.

Packaging Details:

Color Box

Supply Ability:

50000 Pieces

Highlight:

Soft Router Host mini pc

i5 1135G7 Processor mini pc

Product Description

In-tel Core i5 1135G7 Processor mini pc With 6 In-tel I225 Network card Lan 1 HD-MI 4 USB 3.1 soft router host

Product Introduction to In-tel Core i5 1135G7 Processor

This In-tel Core i5 1135G7 processor, supports 2*SODIMM DDR4 3200 MT/s memory modules with a maximum capacity of 64 GB. For storage, it supports 1*M.2 2242

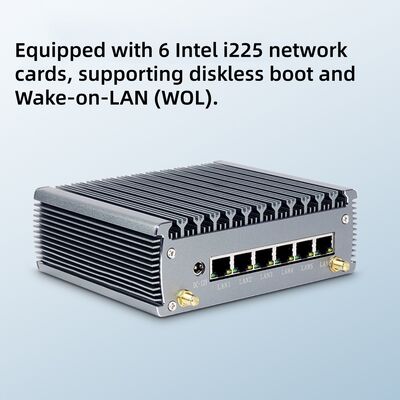

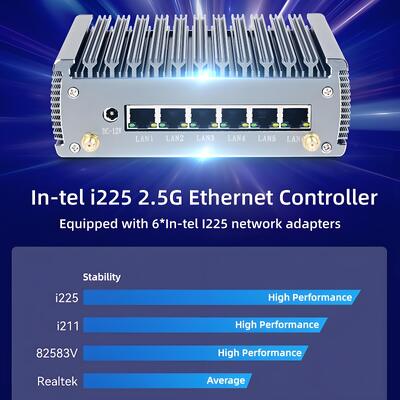

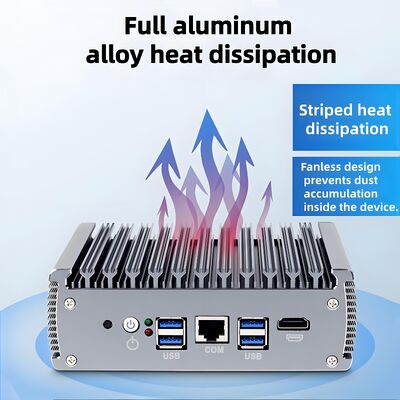

and 1*SATA 3.0 interface. Equipped with 6*In-tel I225 network adapters, supporting diskless boot and Wake-on-LAN. The product features a full aluminum alloy striped

heat sink and fanless design. It effectively prevents dust buildup inside the device and noise generated by running fans.

Product Specifications of In-tel Core i5 1135G7 Processor

Processor	In-tel Core i5 1135G7, 4 Cores, 8 Threads Base, Frequency 2.4GHz
Memory	2*SODIMM DDR4 3200MT/s, up to 64GB supported
Storage Support	1M.2 2242, 1SATA 3.0
Front I/O Ports	4USB3.1, 1HM-DI, 1*RS232/RS485 (RJ45 Ports)
Rear I/O Ports	1DC 12V, 6LAN, 2*WiFi WiFi Antenna Holes
Network chip	In-tel i225 network adapter supports diskless boot and Wake-on-LAN, WOL
Expansion Slots	1*MINI-PCIE (Supports PCIe and USB 3G/4G communication modules)
Operating System	Supports iKuai, OpenWrt, ESXi. Compatible with multi-system and virtual machine deployment. For other systems, please contact customer service.

Product Details of In-tel Core i5 1135G7 Processor

This device powered by In-tel Core i5-1135G7 processor supports operating systems such as iKuai, OpenWrt, ESXi.

Default OS: OpenWrt. Please leave a message or contact customer service if you need other systems.

Performance Introduction of In-tel Core i5 1135G7 Processor

The 11th Gen In-tel Core i5 1135G7 processor comes with 4 cores and 8 threads for smooth multitasking. It runs at a base frequency of 2.4 GHz and a max turbo

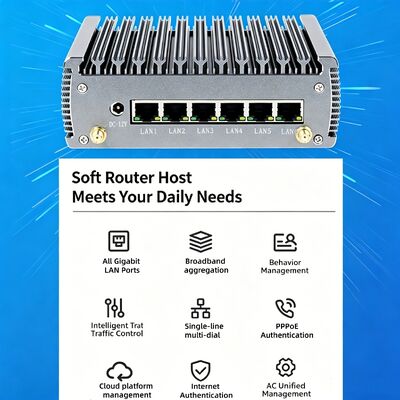

frequency of 4.2 GHz, delivering outstanding processing speed. The soft router supports the single-line multi-dial function. This feature requires your local ISP

broadband to support multi-dialing, otherwise, multi-dial will not work.

Assign PPPoE accounts for internet access. It facilitates management and enhances security via identity authentication.

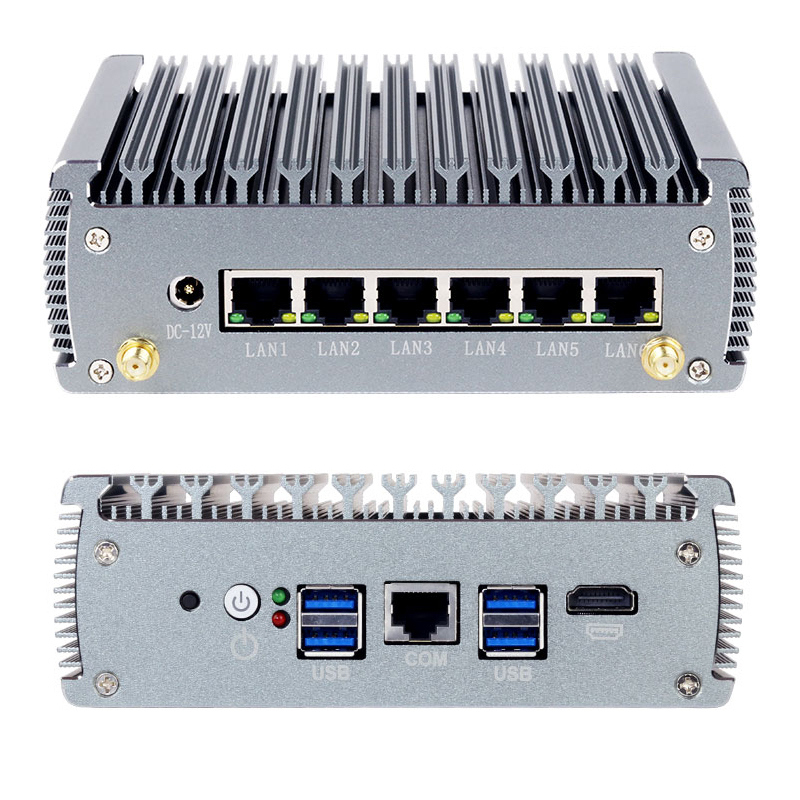

Interface Description of In-tel Core i5-1135G7

Rich interfaces fully meet daily usage requirements. Front Interfaces: 1*Power Switch 4*USB3.1, 1*HD-MI, 1*RS232/RS485 (RJ45 Port); Rear Interfaces: 1*12V DC Power,

6*LAN Ports, 2*WiFi Antenna Holes.
