| Brand Name: | Helor PC |
| Model Number: | X90 Core i5-13500H |
| MOQ: | 1 Pieces |
| Price: | $400.20 ~ $739.60 / Piece |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
This home office mini PC with 13th generation Intel Core i5-13500H processors. Dual RJ45 Gigabit Ethernet makes this model suitable for a wide range of environments. The Mini PC Host is a powerful portable computer with excellent processing power and efficient cooling system. It is equipped with three high-performance hard disks and DDR5 high-capacity memory to easily handle multitasking operations and large software runs. As a mini PC, it supports multiple operating systems and can be equipped with a wealth of applications and features to meet the needs of home, office and gaming use.
| CPU | Supports 13th Gen Intel Core i5-13500H |
| Memory | 2*DDR5 SODIMM, Max up to 64GB |
| Hard Disk |
2*M.2 2280(one support NGFF2280/NVME2280 and other one support NVME2280); 1* 2.5-inch HDD/SSD |
| Ethernet | 2*GbE RJ45 Intel i225/i226 2.5G LAN, support PXE boot |
| I/O Interface | 4*USB3.0, 2*USB2.0; 1*thunderbolt4 support 4K output; 2*HDMI2.0; 1*AUX; 1*MIC; 1*DP1.4; 1*Power button; 1*DC |
| Expansion Slot |
1*M2 2230 Slot, support WIFI 802.11B/G/N/AC, default with AX201 wifi6 module; Motherboard expandable 2*232; COM1 optional RS485; 2*USB2.0 Pins |
| Operating System | Windows10, Windows11, LINUX |
| Video Output | 2*HDMI 2.0, 1*DP1.4, 1*thunderbolt 4 |
| Cooling System | Low Noise Turbo Cooling Fan |
| Material | Aluminum Alloy |
| Warranty Service | 3 Years Warranty |
| Power | DC 19V 4.7A |
| Dimension | 168*128*47mm; Weight: about 0.75kg |
| Color | Black and Grey |
| Suitable Temperature |
Storage Temp:-30℃ to +70℃ Operating Temp:-20℃ to +60℃ Relative Humidity 10%~90% @30℃ (non-condensing) |
The CPU of Intel Core i5 Mini PC With thunderbolt 4 expansion Home Office Computer:
This mini PC is powered by the 13th Gen Intel Core i5 processor (such as the i5-13500H), featuring 12 cores, 16 threads, and a turbo frequency of up to 4.7GHz, ensuring smooth multitasking for home office use. Built on Intel 7 architecture and equipped with Thunderbolt 4, it supports 4K display output and high-speed peripheral connectivity, striking an ideal balance between performance and efficiency.
![]()
The Application of Intel Core i5 Mini PC With thunderbolt 4 expansion Home Office Computer:
![]()

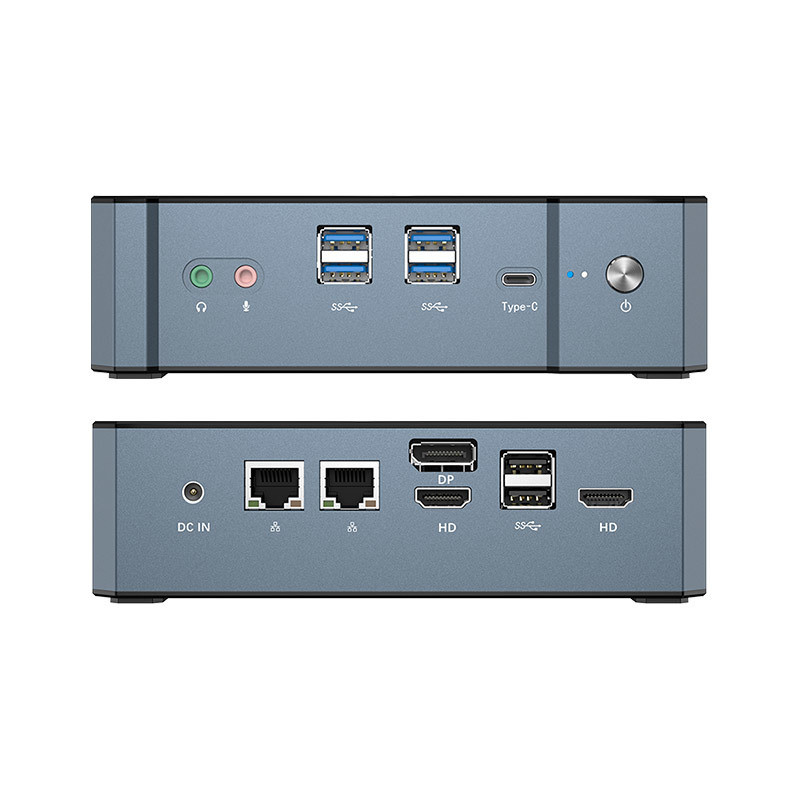

The Interfaces of Intel Core i5 Mini PC With thunderbolt 4 expansion Home Office Computer:
This mini PC features a comprehensive set of interfaces: the front panel includes an AUX MIC port, two USB 3.0 ports, a USB-C Thunderbolt 4 port, and a power button. The rear panel offers a DC IN port, dual 2.5G LAN ports, a DisplayPort (DP), three HDMI ports, and a USB 2.0 port. Notably, Thunderbolt 4 provides versatile expansion capabilities, making it well-suited for home office connectivity requirements.
![]()
|
