Brand Name: | Helor PC |
Model Number: | X77 4LAN 6COM |
MOQ: | 1 Piece |
Price: | $123.00 ~ $256.00 Piece/Pieces |
Delivery Time: | 7-15 work days |
Payment Terms: | T/T |

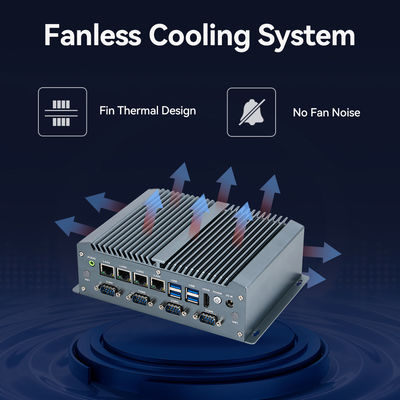

Our industrial fanless mini computer adopts fanless cooling architecture and uses efficient fin design to build a stable thermal management system to ensure that the hardware is always at an ideal operating temperature in harsh industrial environments.
It is small in size and does not take up space, so it is convenient to install anywhere.
With the support of Intel's high-performance processor and rich professional interfaces, data processing and transmission are efficient and accurate, and it is a reliable cornerstone for applications such as industrial automation and intelligent monitoring.
CPU | Intel Core i5-8250U 4 Cores 8 Threads Processor, 3.40 GHz Max Turbo Frequency, 6 MB Cache, 15W TDP, 14NM Lithography |
GPU | Intel® UHD Graphics 620 |

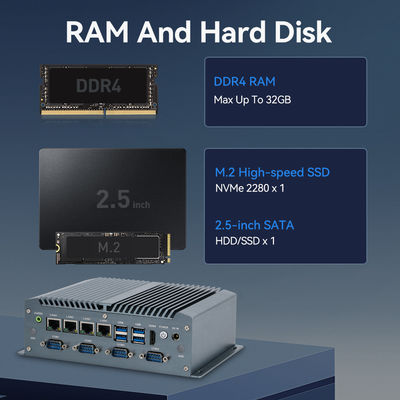

Memory | 1*SODIMM DDR4 RAM, Max Up To 32GB |
Hard Disk | 1*M.2 NVMe 2280 SSD; 1*2.5'' HDD/SSD |
Extension | MINI-PCIE Slot*1, Support WIFI /3G/4G Module, SIM*1, LVDS*1 |
Ethernet | 4*LAN Intel I211 Ethernet, Support Wake-on LAN, Auto Power On, PXE Boot; Support Customized POE Function |

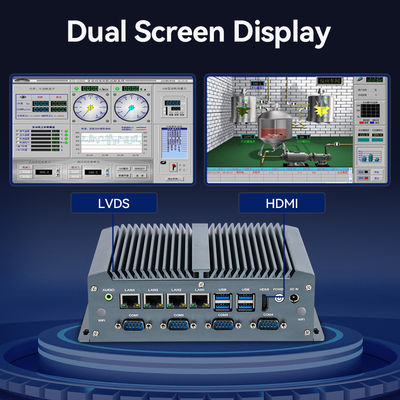

Display | 1*HDMI1.4, 1*Built-in LVDS; Supports Synchronous Or Asynchronous Dual Screen Display |
I/O Interface | DB9 COM*6 (2*RS232/422/485, 4*RS232), HDMI*1, USB3.0*4, USB2.0*4, 16-bit Programmable GPIO*1, DC*1, AUD*1, Power Switch*1 |
Suitable Temperature | Operation Temperature: -20℃ to +70℃, Storage temperature: -30℃ to +70℃ |
Our industrial fanless mini computer is equipped with Intel Core i5-8250U processor, with 4 cores and 8 threads, base frequency of 2.00GHz, maximum turbo frequency of 3.4GHz, and thermal design power consumption (TDP) of only 15W.
It can easily handle complex tasks such as industrial data processing and equipment monitoring, and its computing is efficient and stable.
This industrial mini computer has customizable POE function! This provides you with more flexibility and convenience. If you have relevant needs, just contact our customer service and you can easily customize the functions that suit you to meet your personalized needs.
This computer is equipped with 16-bit programmable GPIO, which maximizes flexibility and functionality. Whether it is controlling solenoid valves to accurately adjust irrigation systems or being used for access control to ensure site safety, it can easily handle the task.

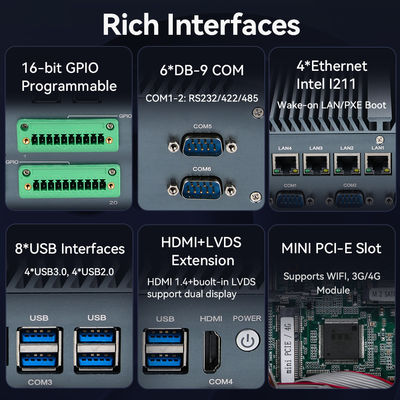

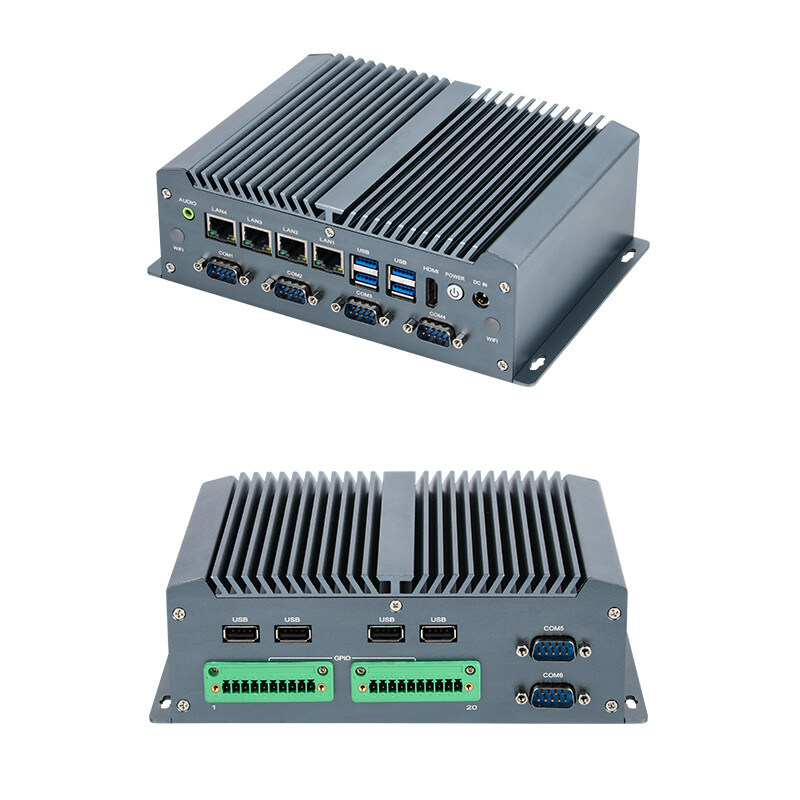

The rich interfaces make its connectivity unparalleled. As can be seen from the picture, multiple LAN interfaces, USB interfaces and other rich interface configurations make it easy for you to connect various devices, whether it is a camera, sensor, or other external devices, to quickly build an efficient working system, just like a universal connection hub, allowing your devices to work seamlessly together.
