Created with Pixso. Single Ethernet Fanless Mini PC 6USB Interfaces Protable Computer For Home Office

Single Ethernet Fanless Mini PC 6USB Interfaces Protable Computer For Home Office

Brand Name: Helor PC
Model Number: X30 Single LAN 6USB
MOQ: 1 Piece
Price: $123.00 ~ $256.00 Piece/Pieces
Delivery Time: 7-15 work days
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
Ce, Rohs, Sgs
CPU:
Intel Core I7, Intel Core I5, Intel Core I3, Intel Celeron
Graphics:
Intel Iris Plus Graphics 640, Intel Iris Graphics 6100, Intel Hd Graphics 620, Intel Hd Graphics 5500, Intel Hd Graphics 520, Intel Hd Graphics 510
After-sales Service:
Call Center And On-Line Technical Support, Free Spare Parts, Return And Replacement, Repair
Wifi:
Module With Dual Antenna,300M,802.11.b/g/n
Dimensions:
133*125*40 Mm
Installation:
Wall Mount, Desktop, VESA
Packaging Details:
Carton Box
Supply Ability:
500 Pieces
Product Description

Single Ethernet Fanless Mini PC 6USB Interfaces Protable Computer For Home Office



Protable Fanless Mini PC Description:



A Mini desktop PC is definitely a good choice to be your office assistant and home entertainment device. This is a mini PC onboard with 4th 5th 6th 7th Intel Core i3 i5 i7, Intel Celeron, and Intel Pentium.

As a micro mini pc and a mini personal computer, it is small, space-saving, and has low power consumption, so it can be used as a mini desktop computer for home, office, business, and students, etc.

This mini PC supports to be installed with Windows7, Windows 8, Windows 10, Linux, Ubuntu or Centos, etc. Based on the fanless design, it works 7/24 hours and runs more stably and reliably in terminals, multimedia, and other different applications.

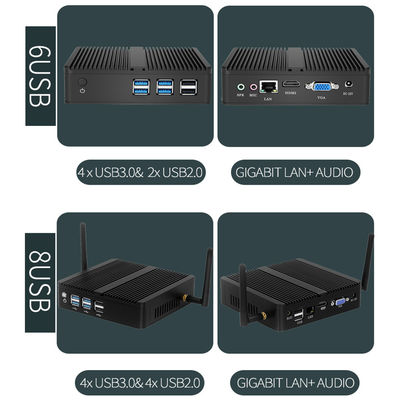

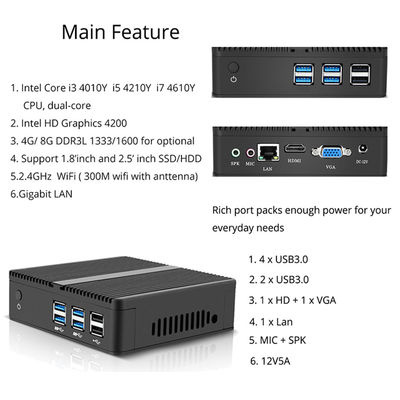

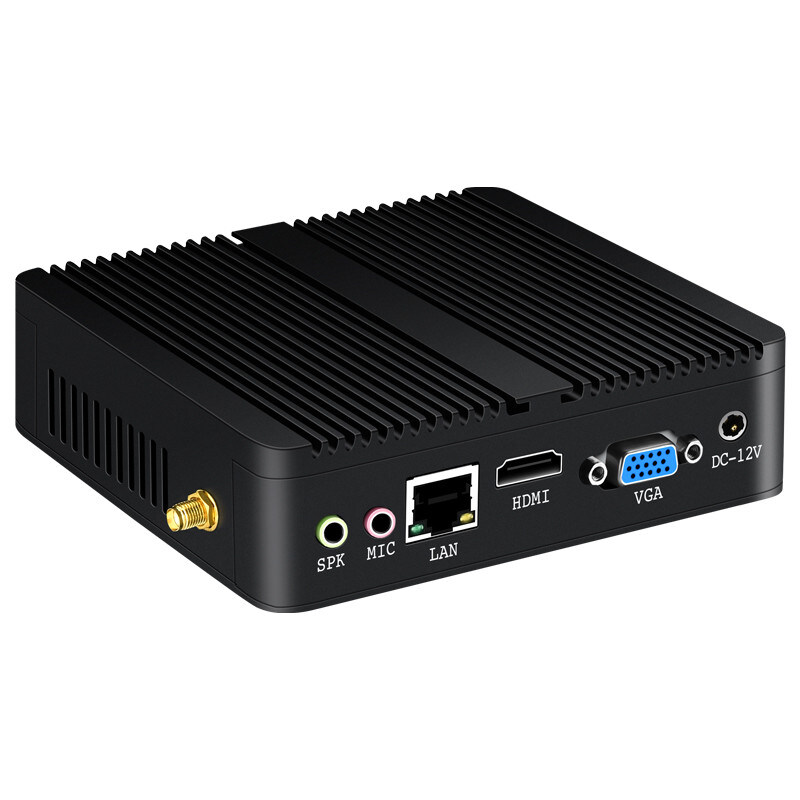

In addition, with the rich interfaces of 1*RJ45,1* HDMI, 1* VGA, 4*USB3.0, and 2*USB2.0, there is an easy interconnection between devices.



Protable Fanless Mini PC Specification:



CPU Intel Celeron 2955U/ 3205U/ 3855U/ 3955U; Core i3-4010Y/ 4010U/ 5005U; Core i5-4200U/ 5200U; Core i7-4500U/ 5500U
BIOS American
Memory

1* Single Channel SODIMM, DDR3L 1333/1600MHz;

2GB/4GB/8GB/16GB optional (Only 5th CPU supports 16GB RAM)

Hard Disk

Support 1* mSATA SSD + 1* 2.5” SSD / HDD; 32GB / 64GB /128GB / 256GB / 512GB / 1TB Optional, 160GB/500GB/1TB HDD optional

Extension 1* Mini-PCIe Slot, Support WiFi Module
Ethernet 1 x RJ45 10/100/1000Mbps Realtek 8111F Gigabits Ethernet
WIFI Module with dual antenna,300M,802.11.b/g/n
Features Support Wake UP on LAN, S5 RTC Wake Settings(Power on at a set time), PXE Boot, Restore on AC powe loss(Auto Power on).
Power Input: DC100-240V AC/50-60Hz, Output: DC 12V-3A 36W /5A 60W
OS Win 10/8 /7, Linux, Ubuntu, Openelec, etc.
Cooling System Fanless Passive Cooling And Heat Sink
Display 1*VGA and 1*HDMI, Support for Synchronous or Asynchronous Display.
Dimensions 133mm*125mm*40mm
USB Ports 4* USB3.0, 2*USB2.0
Material Aluminum Alloy Chassis
Suitable Temperature Operating Temperature : -20 ~ +65℃; Storage Temperature: -20 ~ +85℃(15℃ - 35℃ Recommended); Relative Humidity: 10% ~ 90% (without condensation)





Protable Fanless Mini PC Details:



In terms of memory, the mini desktop computer is equipped with one single-channel SODIMM, DDR3L (1333/1600MHz), and provides 2GB/4GB/8GB/16GB options (only the 5th generation CPU supports 16GB memory), which meets the memory requirements of different software and ensures smooth operation of the system.

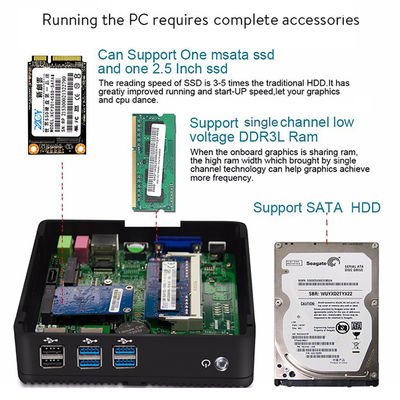

In terms of storage, it supports 1*mSATA SSD and a 2.5" SSD/HDD hard disk, with optional capacities of 32GB/64GB/128GB/256GB/512GB/1TB, and 160GB/500GB/1TB HDD optional, which can easily accommodate your work documents, high-definition videos, large software and other massive data.



Single Ethernet Fanless Mini PC 6USB Interfaces Protable Computer For Home Office 0

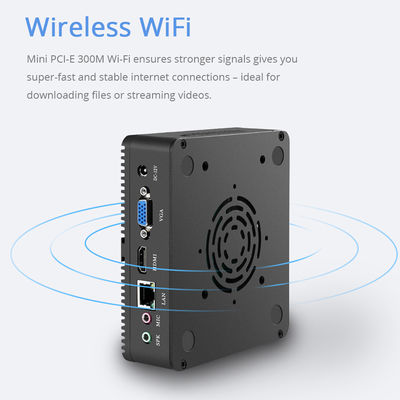

This fanless mini pc with one Mini-PCIe slot, supports WiFi module, with dual-antenna WiFi module, the speed reaches 300M, 802.11.b/g/n, allowing you to enjoy the convenience of wireless network.

One RJ45 10/100/1000Mbps Realtek 8111F Gigabit Ethernet interface, ensures high-speed and stable wired network, supports network wake-up and other functions, to meet your diverse networking needs.



Single Ethernet Fanless Mini PC 6USB Interfaces Protable Computer For Home Office 1





The fanless passive cooling and heat sink design ensures that the computer maintains a low and stable temperature during operation, avoiding performance degradation due to overheating. At the same time, there is no fan operation noise, creating a quiet usage environment.



Single Ethernet Fanless Mini PC 6USB Interfaces Protable Computer For Home Office 2

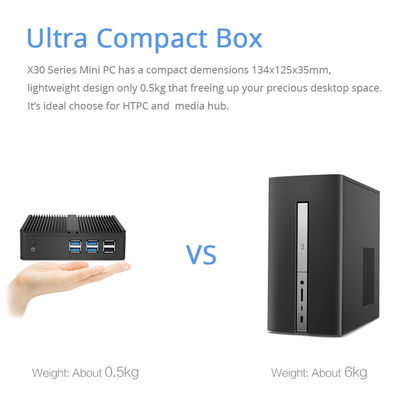

This fanless mini computer is compact and exquisite, supports VESA mounting, and the included mounting bracket allows you to easily install the computer behind the monitor. With just a few simple steps, you can cleverly hide the computer and make your desktop neat and tidy.



Single Ethernet Fanless Mini PC 6USB Interfaces Protable Computer For Home Office 3
