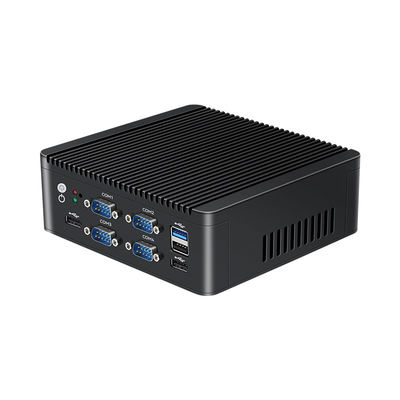

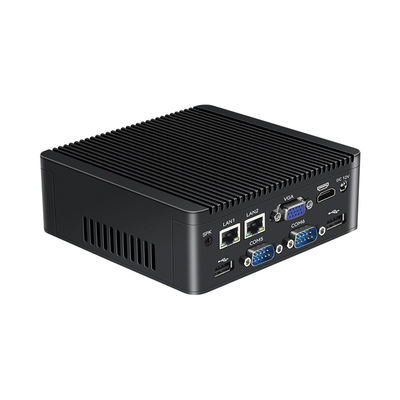

Intel N5000 J4125 4 Core Mini PC With Dual LAN 6 COM And DDR4 Up To 8G

Name: Intel N5000 J4125 4 Core Mini PC With Dual LAN 6 COM And DDR4 Up To 8G
Brand: Shenzhen Helor Cloud Computer Co., Ltd.
SKU: X30G N500 J4125
Price: 155.00 USD
Availability: InStock

Brand Name:	Helor PC
Model Number:	X30G N500 J4125
MOQ:	1 Piece
Price:	Negotiable
Delivery Time:	15 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Ce, Rohs, Sgs

CPU:

Intel Celeron J4125, Intel Pentium N5000 Processor

Display Ports:

1*HDMI 4096x2304@60HZ, 1*VGA 1920x1200@60HZ

Ethernet:

2*Intel I225V 2.5G LAN

GPIO:

8*GPIO, 2 X5 Pin, 2.0mm

Packaging Details:

Carton Box

Supply Ability:

500 Pieces

Highlight:

Intel J4125 Mini PC 8G

Dual LAN 4 Core Mini PC

DDR4 Intel N5000 Mini PC

Product Description

Intel N5000 J4125 4 Core Mini Computer With Dual LAN 6 COM And DDR4 Up To 8G

Intel Mini Computer Description:

This is an embedded industrial mini PC which onboard with Intel Celeron J4125 or Intel Pentium N5000 processor. The mini industrial computer comes with dual LAN (2* RJ45 2.5G LAN) and six COM (2* RS232/RS485 COM + 4* RS232 COM).

It can meet a variety of needs in demanding environments. Based on the fanless mini computer design, it can run more stably and reliably used in buisiness, banking, securities, industrial automation, and other fields.

This mini PC supports to be installed with Windows 10, Linux, Ubuntu or Centos, etc. With the rich interfaces of 1* HDMI, 1*VGA, 2*RJ45 LAN, 6*COM, 6*USB, onthere is an easy interconnection between devices.

Intel Mini Computer Details:

Intel Mini Computer Details
CPU	Intel Celeron J4125, Burst Frequency: 2.70 GHz, Processor Base Frequency: 2.00 GHz, Cache: 4 MB, TDP: 10 W Intel Pentium N5000 Processor, Burst Frequency: 2.70 GHz, Processor Base Frequency: 1.10 GHz, Cache: 4 MB, TDP: 6 W
GPU	Celeron J4125: Intel® UHD Graphics 600 Pentium N5000: Intel® UHD Graphics 605
Display Ports	1HDMI 4096x2304@30HZ, 1VGA 1920x1200@60HZ, support 4K synchronous or asynchronous display
Storage	1SATA 3.0 HDD / SSD, 1mSATA SSD
Memory	1*DDR4 SODIMM, Up To 8G
Ethernet	2* Intel i225V 2.5G LAN
Operating System	Windows10, Windows 11, Linux, etc.
I/O Interface	2RJ45 LAN, 6COM (2RS232/RS485, 4RS232), 1HDMI, 1VGA, 2USB 3.0, 4USB 2.0, 1SPK, 1DC-IN, 1*Power button
Extention Slot	1Mini-PCIE Slot (support PCIe and USB 2.0), 8GPIO (25pin), 1TPM 2.0 (Optional), EFI BIOS (0-255 seconds, watchdog routine provided),
Wireless	1*Mini-PCIE, Support WiFi or 2 in 1 WIFI & BT, 3G/4G LTE (Optional)
Other	Wake-up on LAN, S5 RTC Wake Settings, PXE Boot, Restore AC power loss (Auto Power On)
Power	1*DC 12-19V
Dimension	136mm x126mm x46mm
Weight	≈0.65KG
Suitable Temperatur	Operating Temperature: -20℃ to +60℃, Storage Temperature: -40℃ to +85℃, Storage Humidity: 0%~90% (relative humidity, no condensation)

Intel Min Computer Processor:

This is an embedded industrial mini PC which onboard with Intel Celeron J4125 4-core 4-thread processor or Intel Pentium N5000 quad-core four-thread processor, which has low power consumption and high performance.
Intel N5000 J4125 4 Core Mini PC With Dual LAN 6 COM And DDR4 Up To 8G 0

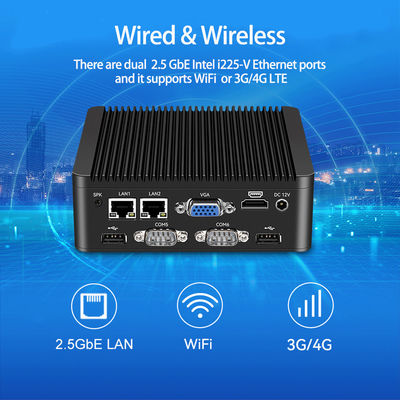

Intel Mini Computer Ethernet:

This industrial mini computer is equipped with 2*2.5GbE Intel i225-V Ethernet ports, which supports Wifi or 3G/4G module.
Intel N5000 J4125 4 Core Mini PC With Dual LAN 6 COM And DDR4 Up To 8G 1

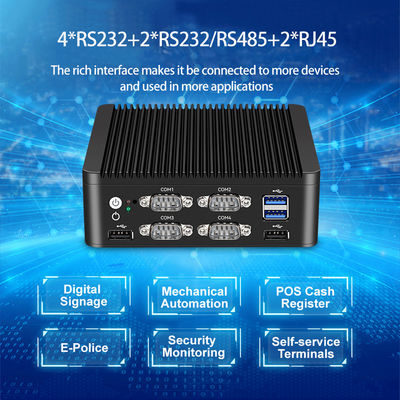

**Intel Mini Computer 6*COM Interface:**

The Intel industrial mini PC has 6*COM interfaces (2*RS232 / RS485, 4*RS232), whivh can make the mini PC can be connected to more devices and used in more applications.
Intel N5000 J4125 4 Core Mini PC With Dual LAN 6 COM And DDR4 Up To 8G 2

Intel Mini Computer Application:

Intel N5000 J4125 4 Core Mini PC With Dual LAN 6 COM And DDR4 Up To 8G 3

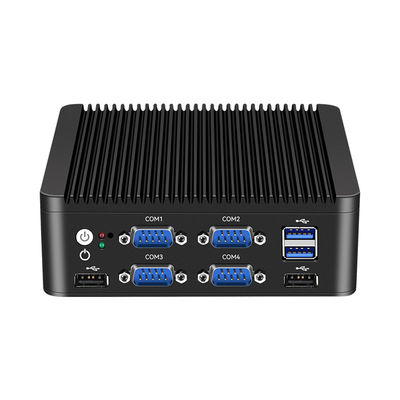

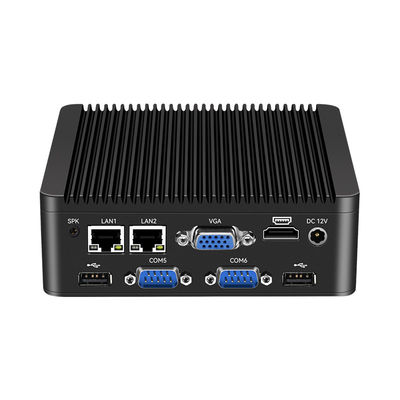

Intel Mini Computer Interface Demonstration:

Intel N5000 J4125 4 Core Mini PC With Dual LAN 6 COM And DDR4 Up To 8G 4
