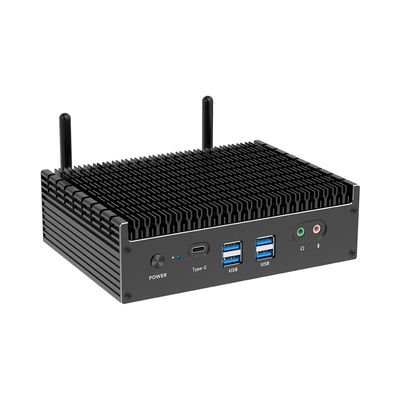

Dual Ethernet DDR4 Fanless Intel Mini PC I5 I7 I9 12th Generation

Dual Ethernet DDR4 Fanless Intel Mini PC I5 I7 I9 12th Generation

Brand Name:	Helor PC
Model Number:	X78
MOQ:	1 Piece
Price:	Negotiable
Delivery Time:	15 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Ce, Rohs, Sgs

CPU:

12th 13th Generation Intel Core I3 I5 I7

GPU:

Intel Iris Graphics, Intel UHD Graphics

Memory:

2*DDR4 2133/2400/2666MHz, Max Up To 64GB(2*32GB, Or 1*64G)

Storage:

2* M.2 2280 SSD +1* 2.5" SATA HDD / SSD

Packaging Details:

Carton Box

Supply Ability:

500 Pieces

Highlight:

Dual Ethernet Intel Mini PC

Fanless Intel Mini PC

DDR4 Mini PC i7 12th Generation

Product Description

Intel 12th Generation Core i5 i7 i9 Processor Mini PC With Dual Ethernet And DDR4

Intel Mini PC Decription:

Equipped with 12th or 13th generation Intel Core processor on this fanless mini PC, it significantly improves multi-tasking capability and makes multiple programs simultaneously run more smoothly, which delivers an impressive performance.

It can be not only as a mini desktop computer for home and office use, but also as an industrial computer for scenarios that require a high performance computer.

There are one DP, two HDMI, and one Type-C on the mini computer, which supports 2*4K and 2* 8K video output, connecting up to four HDR displays at once for a new viewing experience of up to 4K/8K 60Hz.

Intel Mini PC Details:

Intel Mini PC Details
CPU	Intel Core i3-1215U, i5-1235U, i7-1255U, i7-1355U Processor
Memory	2* 260-pin SO-DIMM DDR4, Max up to 64GB (232GB or 164GB)
Storage	1* M.2 NVME 2280 / NGFF 2280 SSD, 1* M.2 NVME 2280 SSD, 1* 2.5" SATA SSD / HDD
Four Video Output	1x DP 1.4 maximum resolution (H-DMI 1.4): 4096 x 2304 @60Hz 2x H-DMI 2.0 maximum resolution (H-DMI 1.4): 4096 x 2304 @60Hz 1* Type-C(Thunderbolt 4) maximum resolution: 4096 x 2304 @30Hz~60Hz
I/O Port	1x Power on/off, 4x USB 3.0, 1x SPK, 1x MIC, 1x DP 1.4, 2x H-DMI 2.0, 1x Type-C Thunderbolt 4, 2x USB 2.0, 2x 2.5GbE RJ45 LAN, 1x DC IN 12V
OS	Windows 11, Windows 10, Linux, Ubuntu, Centos, Openelec, etc.
Wired	2* 2.5GbE RJ45 Intel i225V/i226V
Wireless	Support WiFi 6 & Bluetooth 5.0
Extention	2* USB 2.0, 1RS232 / RS485, 1RS232 can be extended on motherboard
Power	DC-IN 5.5*2.5mm, DC 19V 3.42A/64.98W(AC to DC,100~240V)
Material	Aluminum Alloy
Operating Temperature	-20~60℃
Storage Temperature	-30~70℃
Relative Humidity	10%-90% (no condensation)

Intel Mini PC RAM And Storage:

The Mini PC is powered by a new 12th-generation Intel Core processor with support for dual-channel DDR4 memory, expandable up to 64GB (32GB*2). At the same time, two M.2 solid-state drives are supported, making file transfer and software loading faster.
Dual Ethernet DDR4 Fanless Intel Mini PC I5 I7 I9 12th Generation 0

Intel Mini PC Supports Four Digital Video Output:

It supports 2*4K and 2* 8K video output, connecting up to four HDR displays at once for a new viewing experience of up to 4K/8K 60Hz.
Dual Ethernet DDR4 Fanless Intel Mini PC I5 I7 I9 12th Generation 1

Intel Mini PC Ethernet:

The computer also offers a wealth of connectivity options, including multiple USB ports, HDMI and DisplayPort ports, as well as ethernet and Wi-Fi connectivity. This allows users to easily connect external devices such as monitors, keyboards, mice, and other peripherals.
Dual Ethernet DDR4 Fanless Intel Mini PC I5 I7 I9 12th Generation 2

Intel Mini PC Fanless Cooling System:

This Core mini iPC equipped with a new fanless cooling design, it features an aluminum alloy metal body covered with a heat sink on the top to dissipate heat quickly and effectively, keeping the inside of the machine clean and not only saving power, but also supporting quiet operation.
Dual Ethernet DDR4 Fanless Intel Mini PC I5 I7 I9 12th Generation 3

Intel Mini PC Application:

It can be not only as a mini desktop computer for home and office use, but also as an industrial computer for scenarios that require a high performance computer.
Dual Ethernet DDR4 Fanless Intel Mini PC I5 I7 I9 12th Generation 4

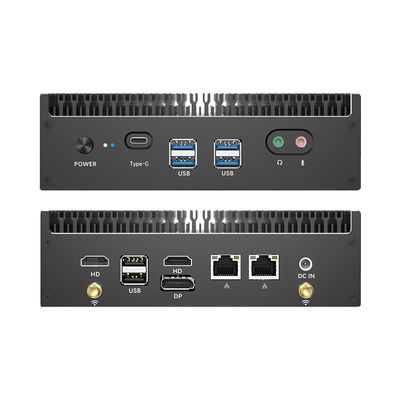

Intel Mini PC Product Interfaces:

Dual Ethernet DDR4 Fanless Intel Mini PC I5 I7 I9 12th Generation 5
