Raptor Lake Intel 13th Generation Motherboard i5-1340P DDR4 RAM Single LAN 6COM

Name: Raptor Lake Intel 13th Generation Motherboard i5-1340P DDR4 RAM Single LAN 6COM
Brand: Shenzhen Helor Cloud Computer Co., Ltd.
SKU: X26UL 1340P
Price: 377.00 USD
Availability: InStock

Brand Name:	Helor PC
Model Number:	X26UL 1340P
MOQ:	1 Pieces
Price:	$285.00 ~ $470.00 / Piece/Pieces
Delivery Time:	15 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen GuangDong China

Certification:

Ce, Rohs, Sgs

CPU:

Intel Raptor Lake 13th Generation Core I5-1340P

GPU:

Intel Iris Xe Graphics 80 (Alder Lake)

Memory:

2*SODIMM NB-DDR4, Supports 2133/ 2400/ 2666/ 2933/ 3200 RAM, Max Up To 32G

Hard Disk:

1*M.2-SATA/PCIE, Support Key-M Port M.2 2280/2242 SSD, Supports NVME/SATA; 1*SATA1 HDD/SSD, Supports SATA3.0

Ethernet:

1/2*RJ45 LAN, Single Network Supports Intel I219V Gigabit NIC, Supports Wake-on LAN, PXE Function

Extension:

1*M2-WIFI, Supports Key-E Port WIFI/ Bluetooth Module; 1*4G/5G-M.2, Supports Key-B Port, M.2 5G (3052/3042) Module Or M.2 4G (3042) Module

I/O Interface:

2*USB3.2, 2*USB2.0, 1*HDMI2.0, 1*VGA DB15, 1*DP, 1*DC, 1*LINE-out, 1*MIC-in, 6*COM (COM1: RS232/422/485, COM2: RS232, COM3-6: RS232), 1*MSIM1, 1*Power Button

OS:

Windows 11, Windows 10, KylinOS, UnionTech, Etc.

BIOS:

AMI BIOS, Supports Incoming Calls To Power On, Timed Power On, Intelligent Recognition Of Remote Power On/off

Watchdog:

Watchdog Programming, Support Hardware Reset Function (256 Levels, 0-255 Seconds)

Power:

1*DC 12V/7A Or 19V/5A

Dimensions:

170*170*21mm

Operating Temperature:

-10~60℃

Relative Humidity:

5%~95%@30℃ (without Condensation)

Packaging Details:

Carton Box

Supply Ability:

1500 Pieces

Highlight:

Intel 13th Generation Motherboard DDR4

i5-1340P Intel 13th Generation Motherboard

Intel Raptor Lake Motherboards 6COM

Product Description

This X86 Intel architecture motherboard with CPU processor can support customization service, supports Intel Core i3, i5, i7 series processors, and has rich interfaces, strong performance and stable operation capability, which makes it widely used in industrialized fields.

This motherboard adopts good components with low failure rate. Equipped with a single network 6COM interface, it is resistant to high and low temperatures, with an operating temperature of up to 60° and a minimum temperature as low as -10°.

In addition, this motherboard is compact in size, takes up little space area and is highly expandable; it supports 7x24 hours long time stable operation and is highly stable; it is also equipped with two hard disks, one DDR4 memory, 6 COM interfaces and a single Gigabit Ethernet, supporting WIFI and Bluetooth modules, with high performance and fast response speed.

Product Details
CPU	Intel Raptor Lake 13th Generation Core i5-1340P
GPU	Intel Iris Xe Graphics 80 (Alder Lake)
Memory	2*SODIMM NB-DDR4, Supports 2133/ 2400/ 2666/ 2933/ 3200 RAM, Max up to 32G
Hard Disk	1M.2-SATA/PCIE, support Key-M port M.2 2280/2242 SSD, supports NVME/SATA; 1SATA1 HDD/SSD, supports SATA3.0
Ethernet	1/2*RJ45 LAN, Single network supports Intel I219V Gigabit NIC, supports wake-on LAN, PXE function
Extension	1M2-WIFI, Supports Key-E port WIFI/ Bluetooth module; 14G/5G-M.2, supports Key-B port, M.2 5G (3052/3042) module or M.2 4G (3042) module
I/O Interface	2USB3.2, 2USB2.0, 1HDMI2.0, 1VGA DB15, 1DP, 1DC, 1LINE-out, 1MIC-in, 6COM (COM1: RS232/422/485, COM2: RS232, COM3-6: RS232), 1MSIM1, 1*Power button
OS	Windows 11, Windows 10, KylinOS, UnionTech, etc.
BIOS	AMI BIOS, supports incoming calls to power on, timed power on, Intelligent recognition of remote power on/off
Watchdog	Watchdog programming, support hardware reset function (256 levels, 0-255 seconds)
Power	1*DC 12V/7A or 19V/5A
Dimensions	17017021mm
Operating Temperature	-10~60℃
Relative Humidity	5%~95%@30℃ (without condensation)

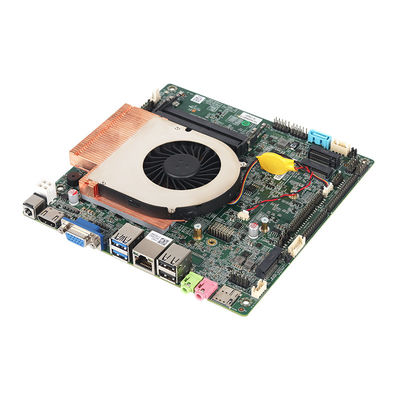

Raptor Lake Intel 13th Generation Motherboard i5-1340P DDR4 RAM Single LAN 6COM 0
This X86 Intel architecture motherboard with CPU processor can support customization service, supports Intel Core i3, i5, i7 series processors, and has rich interfaces, strong performance and stable operation capability, which makes it widely used in industrialized fields.

Raptor Lake Intel 13th Generation Motherboard i5-1340P DDR4 RAM Single LAN 6COM 1

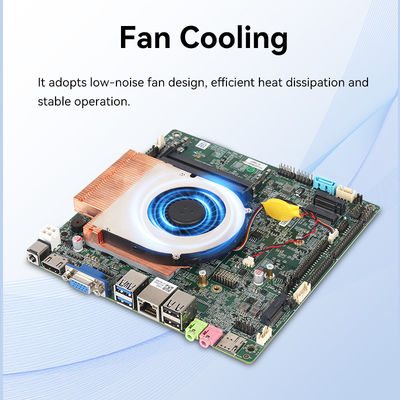

The motherboard is equipped with a cooling fan, which adopts a low-noise fan design to dissipate heat quickly and efficiently, ensuring the safe and stable operation of the device.

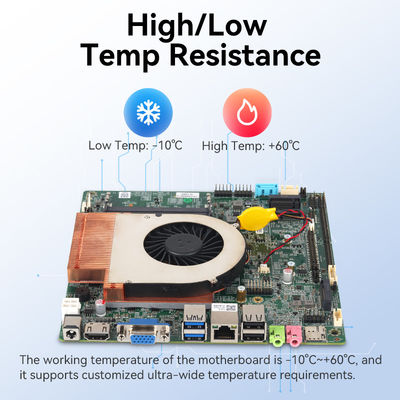

This X86 architecture mini motherboard, although compact, but its ability to withstand high and low temperatures, operating temperatures up to support 60 degrees Celsius, the lowest can support -10 degrees Celsius, and support customized ultra-wide temperature requirements.

Raptor Lake Intel 13th Generation Motherboard i5-1340P DDR4 RAM Single LAN 6COM 3

This high-performance industrial mini motherboard can be widely used in intelligent automation, power cabinets, industrial control and other industrial equipment and fields, bringing great convenience to people's lives.

Raptor Lake Intel 13th Generation Motherboard i5-1340P DDR4 RAM Single LAN 6COM 4
