Intel Celeron 3865U Processor Soft Router With 8 LAN 1 Reset button

Intel Celeron 3865U Processor Soft Router With 8 LAN 1 Reset button

Brand Name:	Helor PC
Model Number:	X117
MOQ:	1 Piece
Price:	166.23USD
Delivery Time:	7-15 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Ce, Rohs, Sgs

CPU:

Intel Celeron 3865U Processor, Base Frequency 1.8GHz, 2MB Cache

Memory:

1*SO-DIMM Memory Slot, Supports Single Channel 2133MHz DDR4 Memory, Up To 32GB

Storage:

1*MSATA + 1*7-pin SATA 3.0 Hard Drive Interface, Transfer Rate Up To 6Gbps

Network Ports:

8*Intel I211AT / I210AT Gigabit Ethernet Ports (I211AT Shipped By Default)

Display:

1*VGA Video Output Interface

USB:

2*USB 3.0 (5Gbps Transfer Speed)

OS Support:

Win7/10 / Linux / Ubuntu / CentOS

Special Features:

Power-on Auto Boot, Wake-on-LAN(WOL), PXE Boot, Hardware Watchdog

Chipset:

SOC

Host Dimensions:

195*127*62mm

Front Interfaces:

2*USB3.0, 2*Gigabit Ethernet Ports, 1*VGA Video Output, 1*reset Button, 1*power Button

Rear Interfaces:

1*DC Power Jack, 1*green Power Indicator, 1*red HDD Activity Indicator, 6*Gigabit Ethernet Ports

Packaging Details:

Color Box

Supply Ability:

50000 pieces/month

Highlight:

Soft Router Firewall Mini Pc

Intel Celeron 3865U Firewall Mini Pc

Product Description

Intel Celeron 3865U Processor Soft Router With 8 LAN 1 Reset button

Firewall Mini PC Product Introduction

This router PC is equipped with 8*independent Gigabit Ethernet ports and built in Intel I211AT Gigabit LAN controllers. It supports WOL Wake-on-LAN, PXE network

boot, link aggregation and hardware level network isolation. Powerful networking capability meets various network scenarios including soft routing, network gateway

and multi segment network isolation. It features a single SO-DIMM memory slot, supporting single channel 2133MHz DDR4 RAM up to 32GB to handle multi task

operations smoothly. For storage, it comes with 1*mSATA slot and 1*7pin SATA3.0 hard drive interface with a maximum transfer speed of 6Gbps.

Firewall Mini PC Product Specifications

CPU	Intel Celeron 3865U Processor
Indicator light	Power indicator + Hard drive indicator
Functions	Power on when plugged in, Wake-on-LAN, PXE boot, Watchdog
Power supply	1*DC12V
Power supply method	External adapter
Operating Temperature	-20℃~60℃
Storage Temperature	-20℃~70℃
Storage Humidity	5%~95% relative humidity, non condensing

Firewall Mini PC CPU Performance

This Mini PC adopts Intel Celeron 3865U processor with low power consumption and stable operation. 2 cores, 2 threads, base frequency of 1.80GHz and 2MB Intel

Smart Cache. Stable and reliable performance to satisfy daily computing demands.

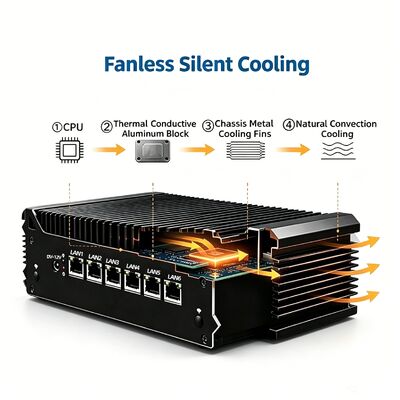

Firewall Mini PC Cooling System

This mini router features a fanless cooling design. Constructed with aluminum heat block and full metal fin structure for natural convection, delivering outstanding heat

dissipation efficiency.

Intel Celeron 3865U Processor Soft Router With 8 LAN 1 Reset button

Firewall Mini PC Application Scenarios

This network router supports a wide range of applications, suitable for industrial automation, factory workshop equipment, financial hardware, shopping mall facilities,

outdoor surveillance networks, server room routing and many other fields.

Firewall Mini PC Interface Description

This computer router is equipped with abundant interfaces. Front panel: 2*USB3.0, 2*Gigabit Ethernet ports, 1*VGA video output, 1*reset button, 1*power button；

Rear panel: 1*DC power jack, 1*green power indicator, 1*red HDD activity indicator, 6*Gigabit Ethernet ports.
