Intel N100 With 16 GB 2 LAN 2 COMs Fanless Industrial Mini PC

Name: Intel N100 With 16 GB 2 LAN 2 COMs Fanless Industrial Mini PC
Brand: Shenzhen Helor Cloud Computer Co., Ltd.
SKU: Intel N100
Price: 164.00 USD
Availability: InStock

Brand Name:	Helor PC
Model Number:	Intel N100
MOQ:	1 Piece
Price:	$80-$248, Negotiable
Delivery Time:	7-15 working days
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Ce, Rohs, Sgs

Processor:

Supports Intel N100 Quad - Core Processor

Memory:

1*SODIMM Slot, Single - Channel DDR5 Memory, Up To 16GB Supported

Hard Disk:

M.2 NVME 2280*1, 7pin SATA3.0 Hard Disk Port*1

Network:

2*Realtek Gigabit Network Cards, Supporting Network Wake - Up/PXE

Front/Rear Interfaces:

USB2.0*4, USB3.1*2, 1*Type - C Display Port, 1*12V DC, DB9 RS232 Serial Port*2 (default RS232, COM1/2 Supports RS485 Via Crossover Cable) SPK*1, MIC*1, Gigabit Network Port*2, DP Port*1, HD Port*2

Graphics Card:

Integrated Intel UHD Graphics Core Graphics Card

Display:

1*HDMI1 Interface (DP Optional), 1*HDMI2 Interface, 1*DP2 Interface 1*Type - C Interface, All Supporting 4K@60Hz. Support For Simultaneous/asynchronous Display Of HDMI1, DP, Type - C

Expansion:

1*M.2 Key - E, Supporting WIFI/BT; 1*M.2 Key - B, Supporting 5G, 1*MCPIE Slot, Supporting WIFI/BT/4G (4G/5G Share One SIM Card Slot)

Operating Temperature:

-10°C ~ 60°C

Storage Temperature:

-20°C ~ 70°C

Packaging Details:

Carton Box

Supply Ability:

50000 Pieces

Product Description

Intel N100 With 16 GB 2 LAN 2 COMs Fanless Industrial Mini PC

Industrial Mini PC Description:

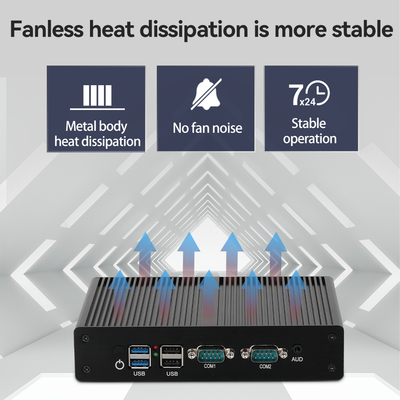

Our Industrial Mini PC features the Intel N100 quad - core processor and a fanless cooling architecture. Leveraging an efficient fin design, it builds a stable thermal management system, ensuring hardware maintains an ideal operating temperature in harsh industrial environments. Its compact form factor occupies minimal space, allowing for convenient installation anywhere.

Equipped with rich professional interfaces (2 LANs, 2 COMs), it enables efficient and accurate data processing and transmission. Supporting up to 16GB DDR5 memory and M.2 hard drives, along with capabilities like 3 - display output and WiFi module compatibility, it serves as a reliable cornerstone for applications such as industrial automation and intelligent monitoring.

Industrial Mini PC Specification:

Processor	Supports Intel N100 quad - core processor
Memory	1*SODIMM slot, single - channel DDR5 memory, up to 16GB supported
Hard Disk	M.2 NVME 22801, 7pin SATA3.0 hard disk port1
Network	2*Realtek Gigabit network cards, supporting network wake - up/PXE
Front/Rear Interfaces	USB2.04, USB3.12, 1Type - C display port, 112V DC, DB9 RS232 serial port2 (default RS232, COM1/2 supports RS485 via crossover cable) SPK1, MIC1, Gigabit network port2, DP port1, HD port2
Graphics Card	Integrated Intel UHD Graphics core graphics card
Display	1HDMI1 interface (DP optional), 1HDMI2 interface, 1DP2 interface 1Type - C interface, all supporting 4K@60Hz. Support for simultaneous/asynchronous display of HDMI1, DP, Type - C
Expansion	1M.2 Key - E, supporting WIFI/BT; 1M.2 Key - B, supporting 5G, 1*MCPIE slot, supporting WIFI/BT/4G (4G/5G share one SIM card slot)
Suitable Temperature	Operation Temperature: -10℃ to +60℃, Storage Temperature: -20°C ~ 70°C

Industrial Mini PC Details:

Our Industrial Mini PC is powered by the Intel N100 processor, featuring 4 cores, 4 threads, up to 3.4GHz with Turbo Boost, and ultra - low 6W power consumption.

Equipped with DDR5 memory and M.2 SSD. The memory ensures efficient data handling, while the M.2 SSD enables fast transmission, vibration resistance, and anti - interference.

It excels in complex tasks like industrial data processing and equipment monitoring, delivering efficient and stable computing performance in harsh industrial environments.

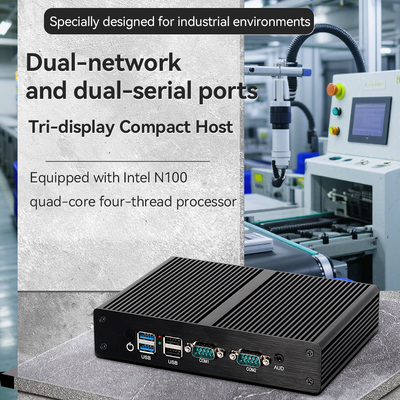

Intel N100 With 16 GB 2 LAN 2 COMs Fanless Industrial Mini PC 0

Industrial Mini PC appliance

Our Industrial Mini PC appliance suits a wide range of application scenarios. In industrial fields, it plays an important role in production control. It can also be applied to CNC machine tools and beverage vending machines.

Additionally, it proves useful in digital signage, multimedia education, turnstile access control systems, and express pickup lockers, providing reliable support across various sectors.

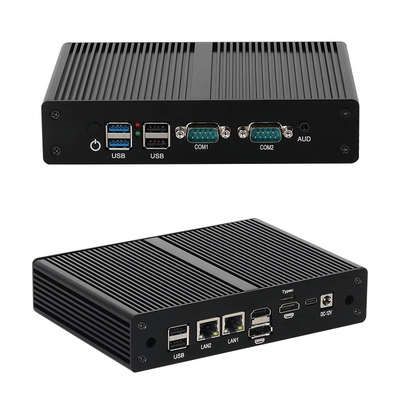

Intel N100 With 16 GB 2 LAN 2 COMs Fanless Industrial Mini PC 1

Industrial Mini PC interfaces

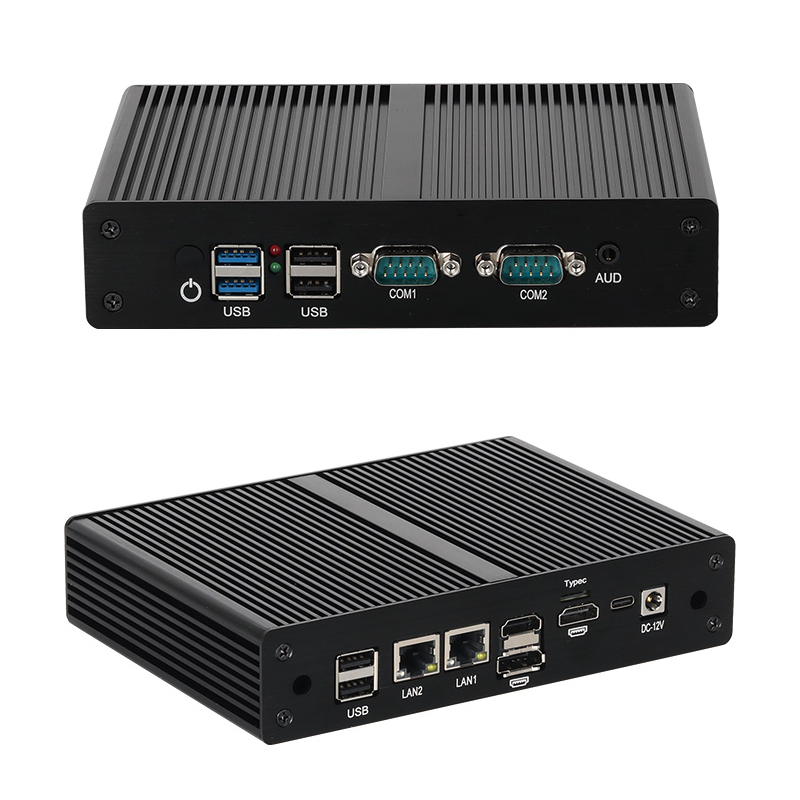

The rich interfaces enable exceptional connectivity. As shown in the picture, it features multiple interfaces: Power Switch, USB 3.1, USB 2.0, COM 1, COM 2, Audio Interface, USB 2.0, Gigabit Ethernet ports (LAN2, LAN1), DP port, HDMI port, Type - C, Power port, and SIM card slot.

These let you effortlessly connect diverse devices like cameras and sensors. It functions like a universal connection hub, helping quickly build an efficient working system and enabling seamless device collaboration.

Intel N100 With 16 GB 2 LAN 2 COMs Fanless Industrial Mini PC 2
